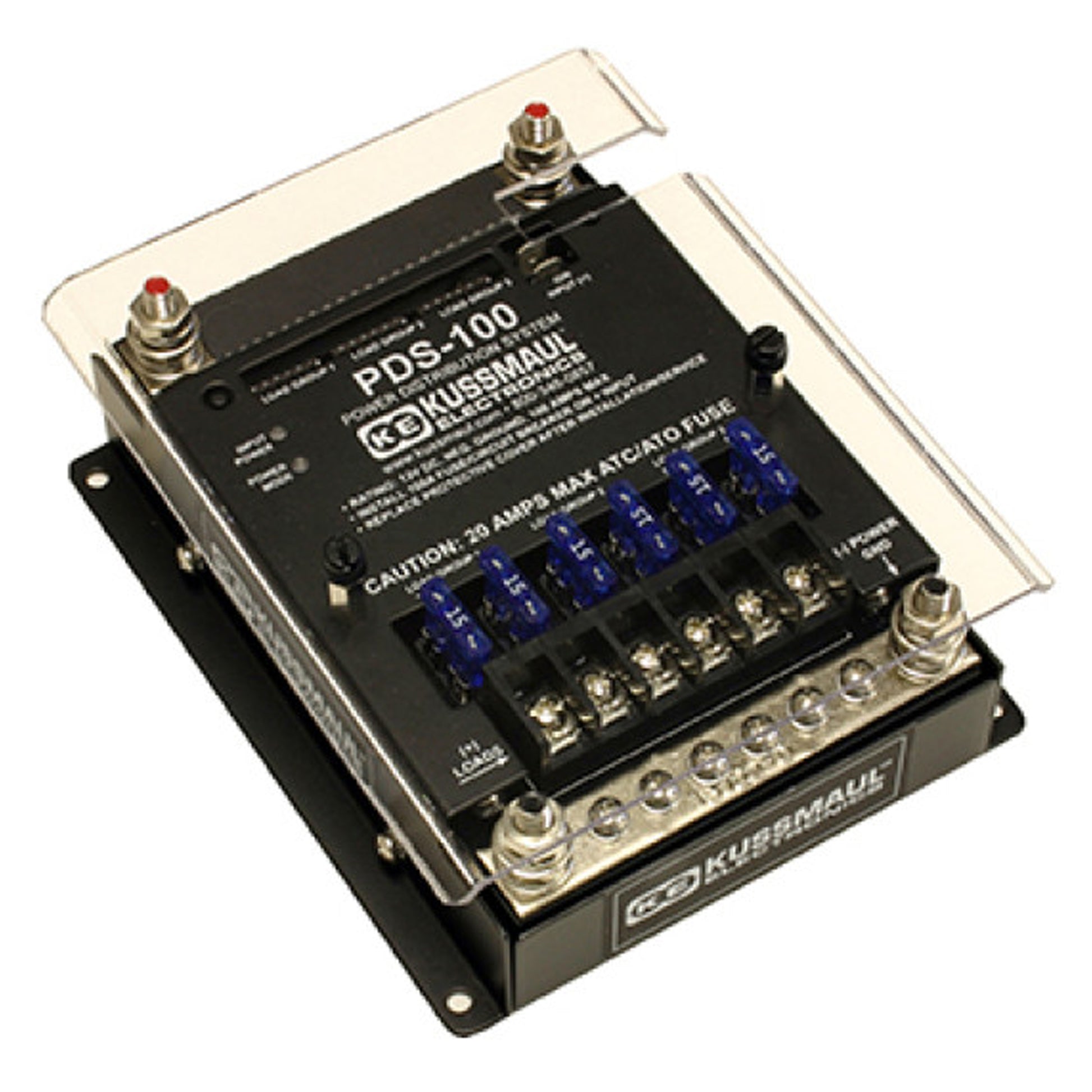

Kussmaul Power Distribution System PDS-100

100A Power Distribution System. Simplifies Wiring of Electronic Accessories.

• Quick and easy way to connect, protect, and program power to emergency vehicle accessories
• Provides six dedicated fused circuits configured in three load groups to power radios, emergency lights, sirens, video, MDT, radar, and more
• Flexible circuit activation/deactivation allows installer to set battery power use priority independently per two circuit load group:
  - Powered only with ignition
  - Timed disconnect
  - Always ON, with load group LVD
  - Always ON, with NO load group LVD
• Each circuit is fuse protected with a LED indicator which identifies the blown fuse position, simplifying troubleshooting
• Master low voltage disconnect protects batteries from an extreme discharge
  Heavy duty studs for battery connections
• Screw terminals for secure load connections
• Increase circuit capacity by wiring multiple PDS using parallel busing kit
• Case is powder-coated aluminum and Bus is nickel-plated cooper
• Protective cover has top panel connections and switches
• Input: 12V, neg. ground
• Master Low Voltage Disconnect: @ 10.5V (factory programmable 10.0 - 11.8V)
• Maximum Load per PDS: 100A, 20A max. per fuse position
• Maximum Load Per System: 3 PDS wired in parallel, 18 circuits
• Power Consumption: Idle - 8mA, Active - 180 mA/circuit
• Protective Cover: Top panel connections and switches
• Programmable Shutdown per Load Group: 2 min – 13 hrs
• Dimensions: 6.20” L x 5.20” W x  2.00” H
• Warranty: 3 years
