Kussmaul Electronics

Kussmaul Low Power Charger LPC 45

Kussmaul Low Power Charger LPC 45

$1,801.98 USD
$1,801.98 USD
Sale Sold out
Model

Built to order

Ships in 2–4 weeks

Tracking sent when it ships.

Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.

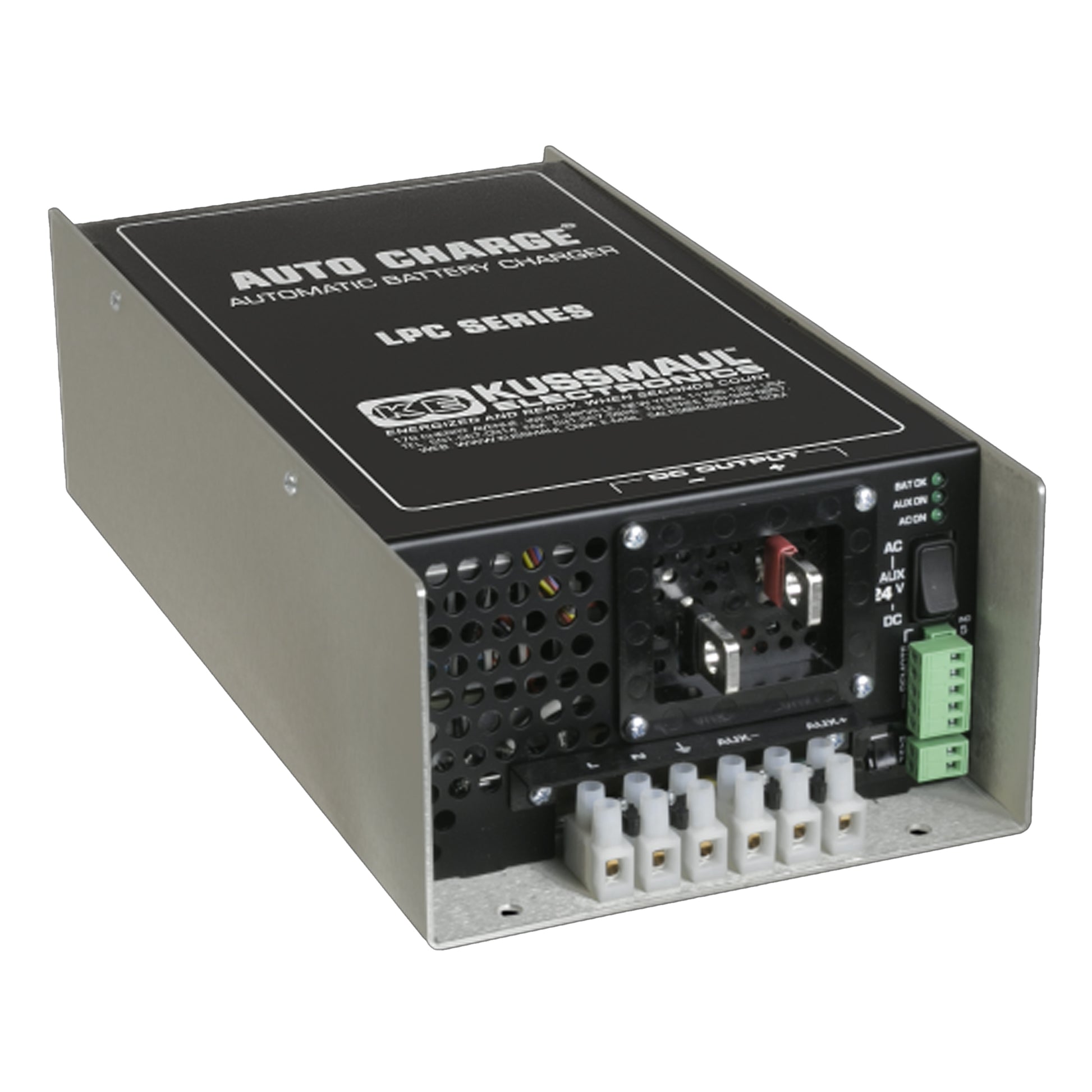

The Low Profile Charger LPC 45 is a single battery bank at 24 Volts DC at 45 Amps, power sensitive electronics.  This heavy-duty smart charger is engineered specifically for fire apparatus, rescue vehicles, and emergency fleets utilizing a 24V architecture.

  • Low Profile Footprint: Built inside a rugged, compact aluminum enclosure designed to fit constrained under-seat or side compartment spaces in utility rigs.
  • Auxiliary Output DC Circuit: Provides a separate 24VDC, 15-Amp auxiliary circuit managed by an onboard power source selector switch. This allows the unit to power external on-board equipment (like air compressor pumps, hand lights, or mobile radios) directly from the shoreline without stressing the vehicle batteries.
  • Clean Power Output: Clean, low-ripple electronic current output ensures zero interference with critical vehicle telemetry or radio frequencies.
  • Smart Battery Regulation: Constantly senses remote battery bank voltage to dynamically adjust charging metrics without any trickle-charge overcharging or water boil-off risk.
  • Remote battery sensing output to compensate for longer charging cables
  • Dimensions: 4.09” L x 7.00” W x 13.75” H

The base models use 120 VAC input power, while "-240" designates units built for international or industrial 240 VAC grids:

  • 091-206-24: Base 120V unit bundled with a standard 10-Element LED Bar Graph Display.
  • 091-206-24-194C: 120V unit bundled with the Deluxe Status Center (featuring a digital numeric voltage/amperage display, 5-segment bar graph, and 4 battery condition LEDs).
  • 091-206-24-194C-WT-BLK: 120V unit with the Deluxe Status Center housed in a Watertight Bezel - Black.
  • 091-206-24-194C-WT-RD: 120V unit with the Deluxe Status Center housed in a Watertight Bezel - Red.
  • 091-206-24-194C-WT-YW: 120V unit with the Deluxe Status Center housed in a Watertight Bezel - Yellow.
  • 091-206-24-240: Base 240V input model bundled with the standard 10-Element LED Bar Graph Display.
  • 091-206-24-240-194CWT-BLK: 240V input model bundled with the Deluxe Status Center in a Watertight Bezel - Black.
  • 091-206-24-240-IND: 240V input model packaged with a single-LED remote status indicator.
  • 091-206-24-IND: Base 120V unit packaged with a single-LED remote status indicator.
