Kussmaul Electronics

Kussmaul Waterproof Fittings CCX Series

$72.63 USD

Sale Sold out

Model 007-2003-0 CCX-R 007-2004-0 CCX-S 007-2005-0 CCX-T

Estimated Lead Time

2–4 weeks from order date

You'll receive a shipping confirmation with tracking once your order ships.

WATERPROOF FITTINGS-CCX SERIES

Create a 100% waterproof seal when routing cables through vehicle roofs
Allowing installation/removal with a connector still attached
Entry hole is pre-drilled in a seal with a slit to edge allowing feed-thru of the cable with a factory installed connector attached

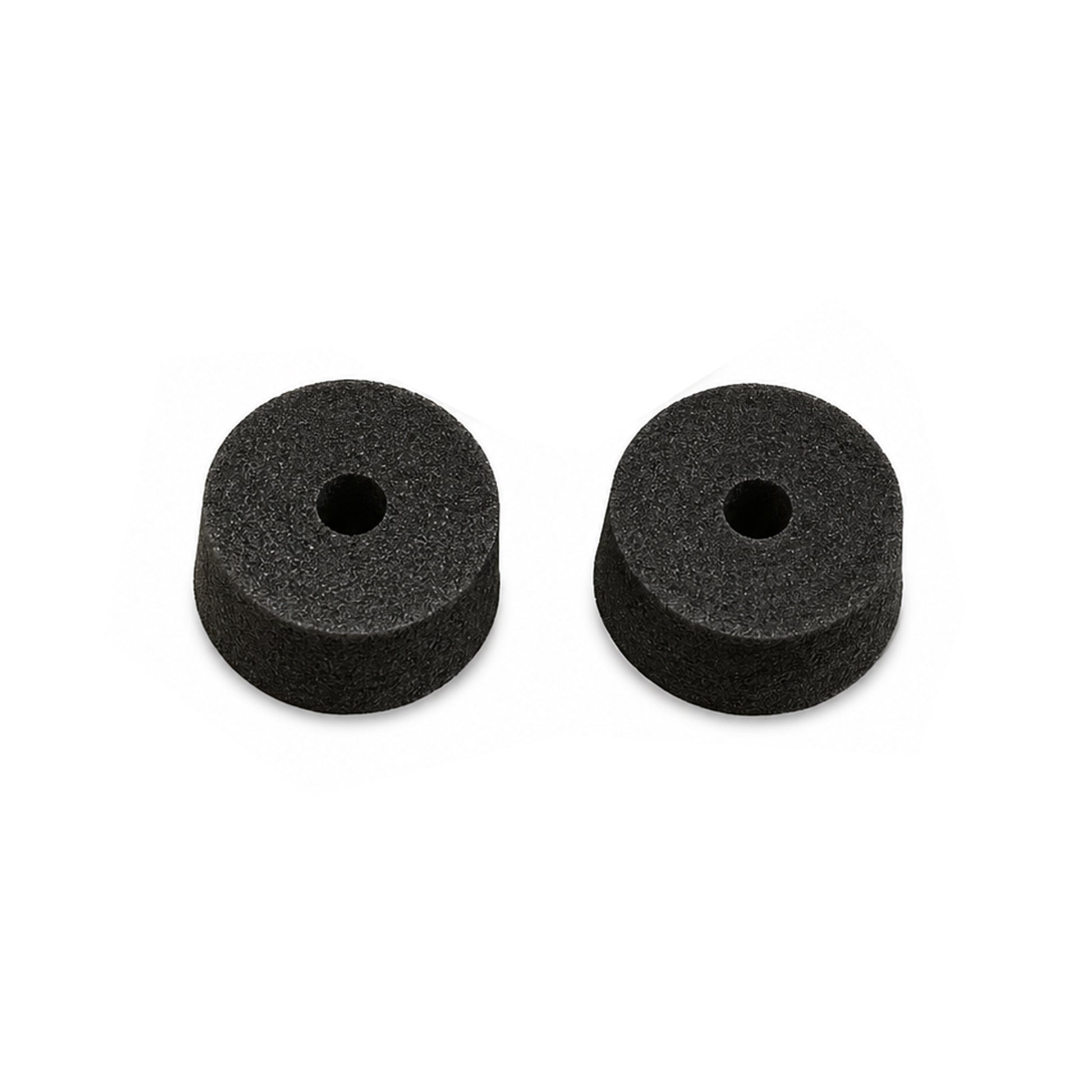

007-2003-0 CCX-R
Cable Diameter Range: 0.47"-0.59"
Max Connnector Diameter: 1.57"
Dimensions: 2.59” D, .83” H

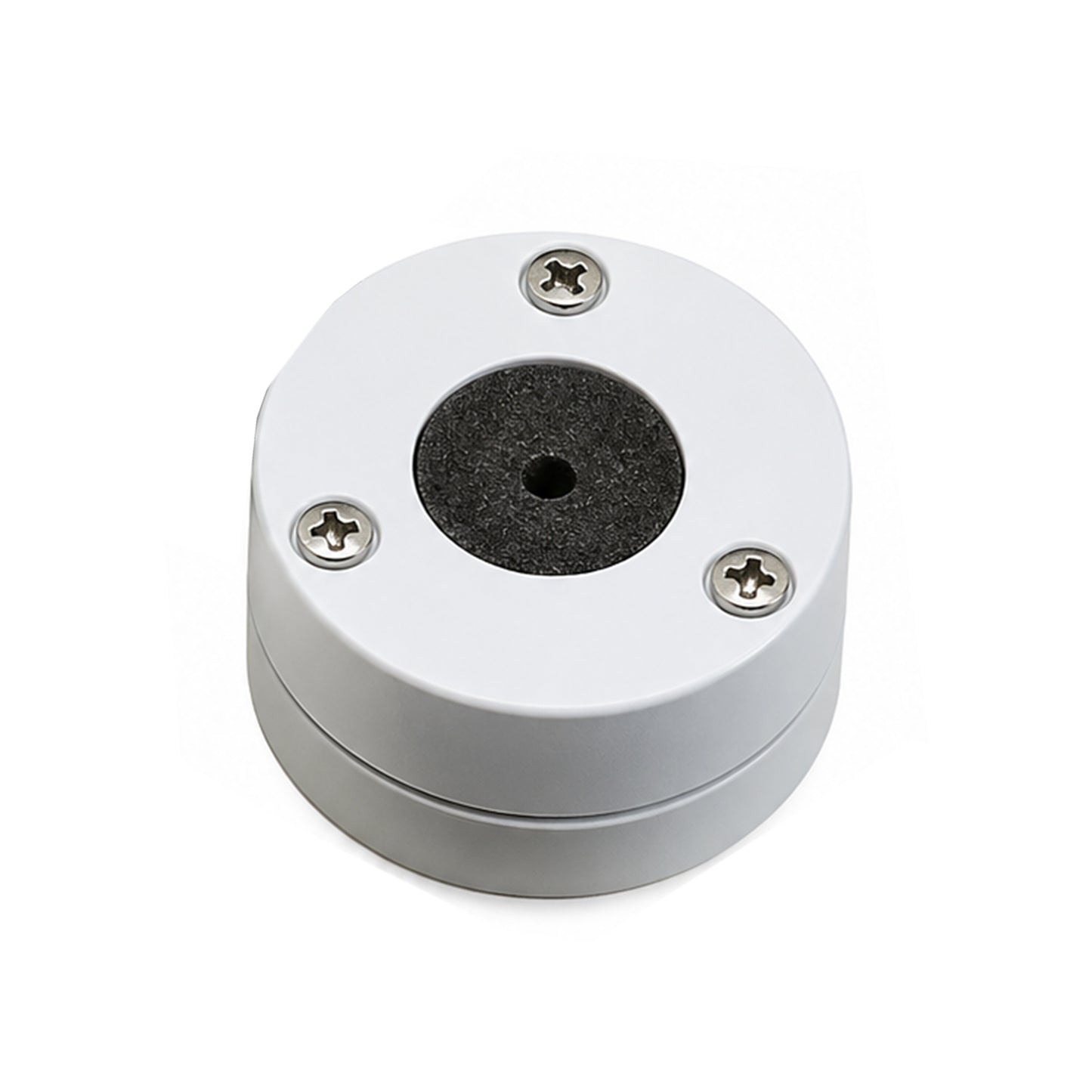

007-2004-0 CCX-S
Cable Diameter Range: 0.35"-0.55"
Max Connnector Diameter: .83"
Dimensions: 1.77” D, .83” H

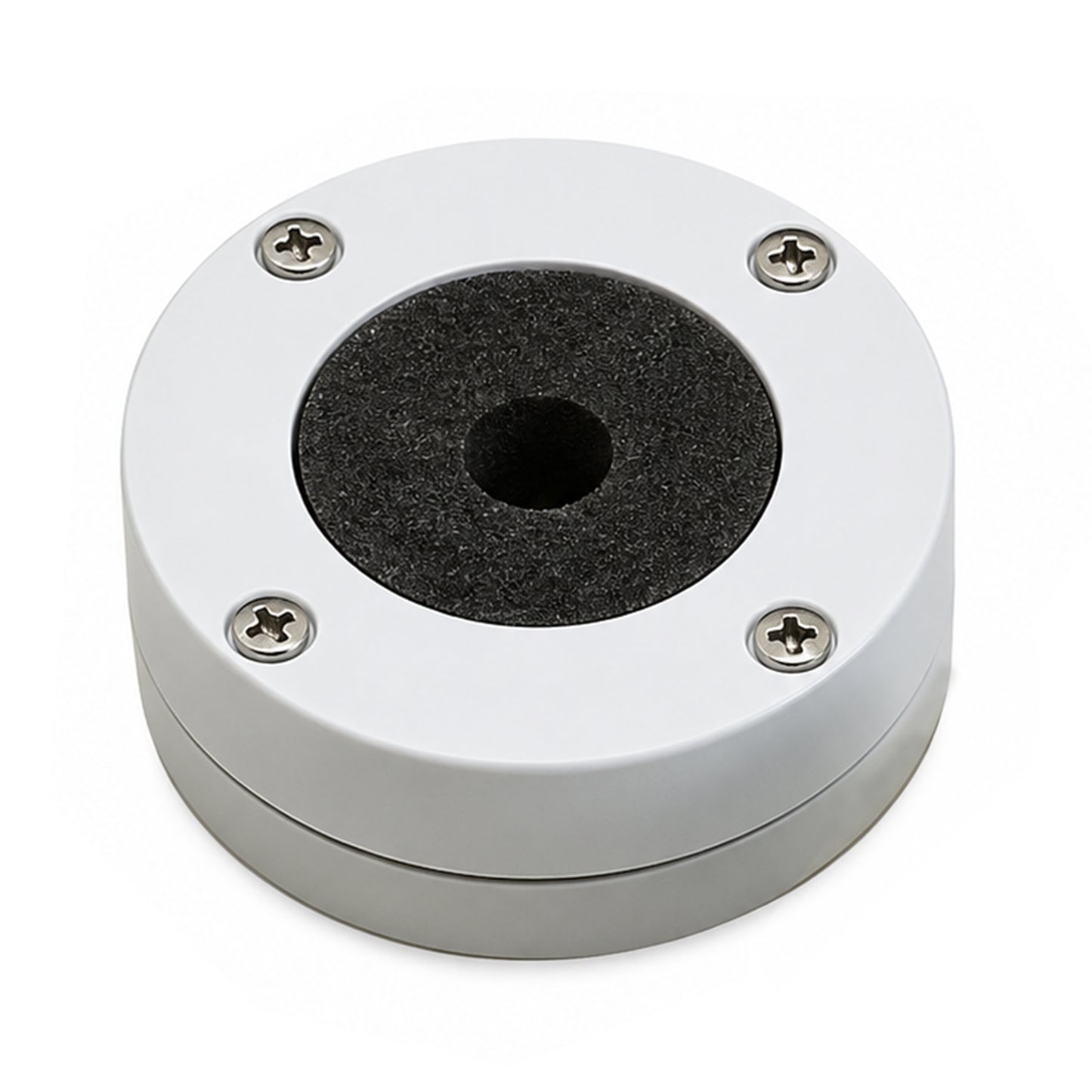

007-2005-0 CCX-T
Cable Diameter Range: 0.18"-0.35"
Max Connnector Diameter: .83"
Dimensions: 1.93” D, .75” H
