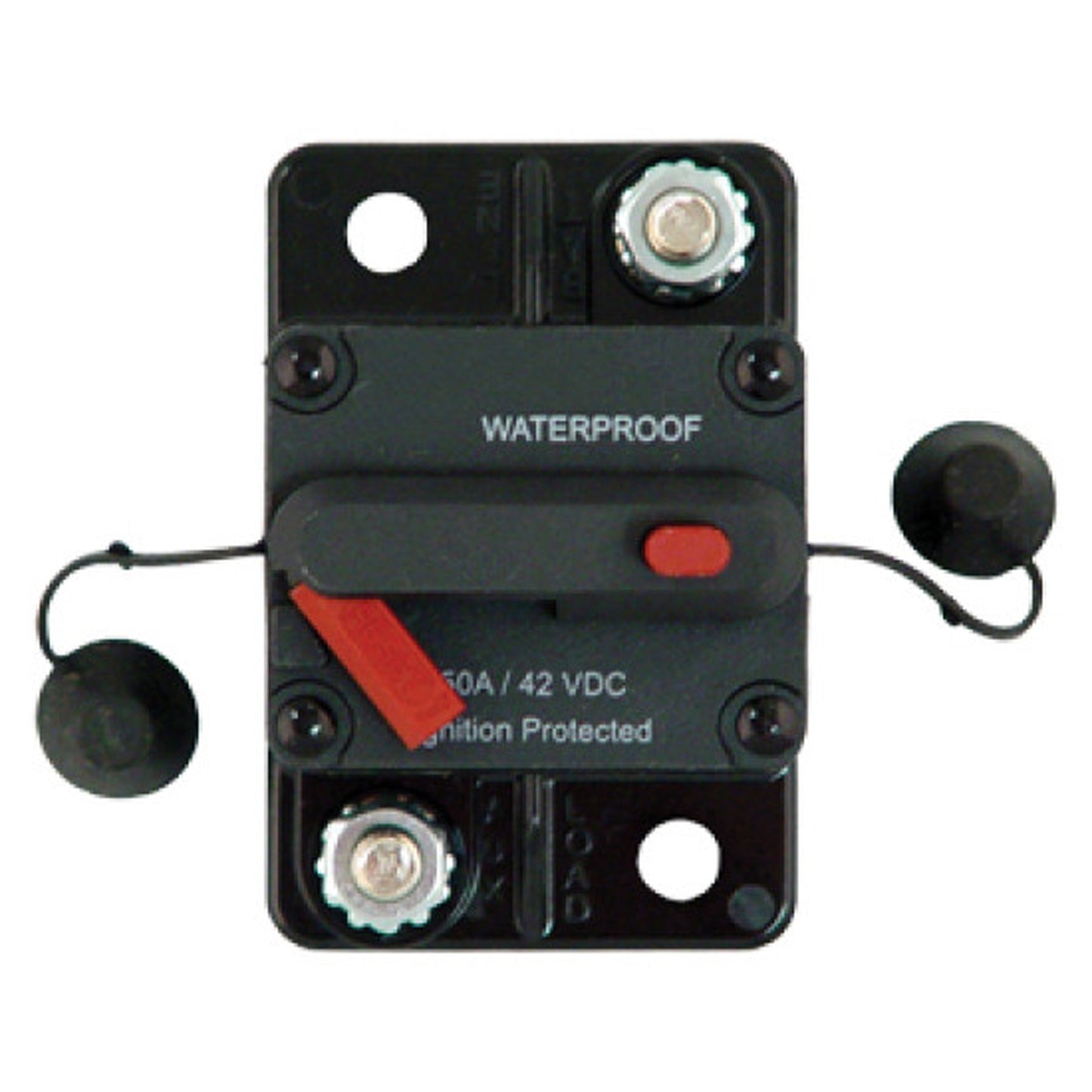

Kussmaul Waterproof Circuit Breakers

WATERPROOF, HIGH AMPERAGE SURFACE MOUNT CIRCUIT BREAKERS

• Combines switching and a circuit breaker function in one unit
• Compact size and surface mount configuration protects high amperage circuits
• Trip delay curve accommodates high surge amperage from motor start
• Push to disconnect button de-energizes the circuit for maintenance
• Latch arm resets the breaker after overload, but cannot be held in the “ON” position if a short remains on the circuit
• 1/4” terminal studs with protective covers
• Waterproof - ideal for marine and truck applications
• Ignition is protected for safe use in gasoline powered applications
• High impact plastic molded case with two 1/4” holes, mounting hardware not provided
• Thermal trip sensing
