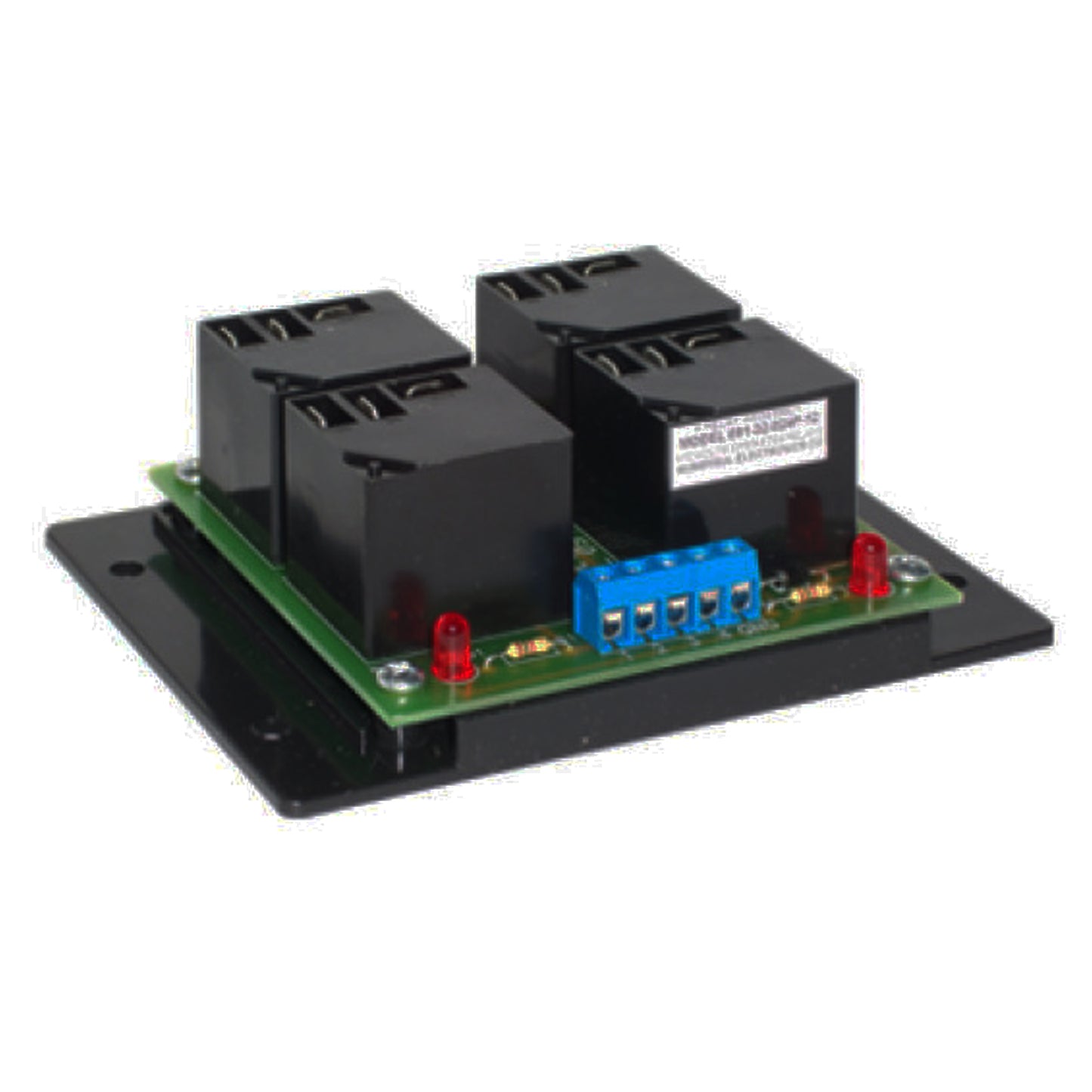

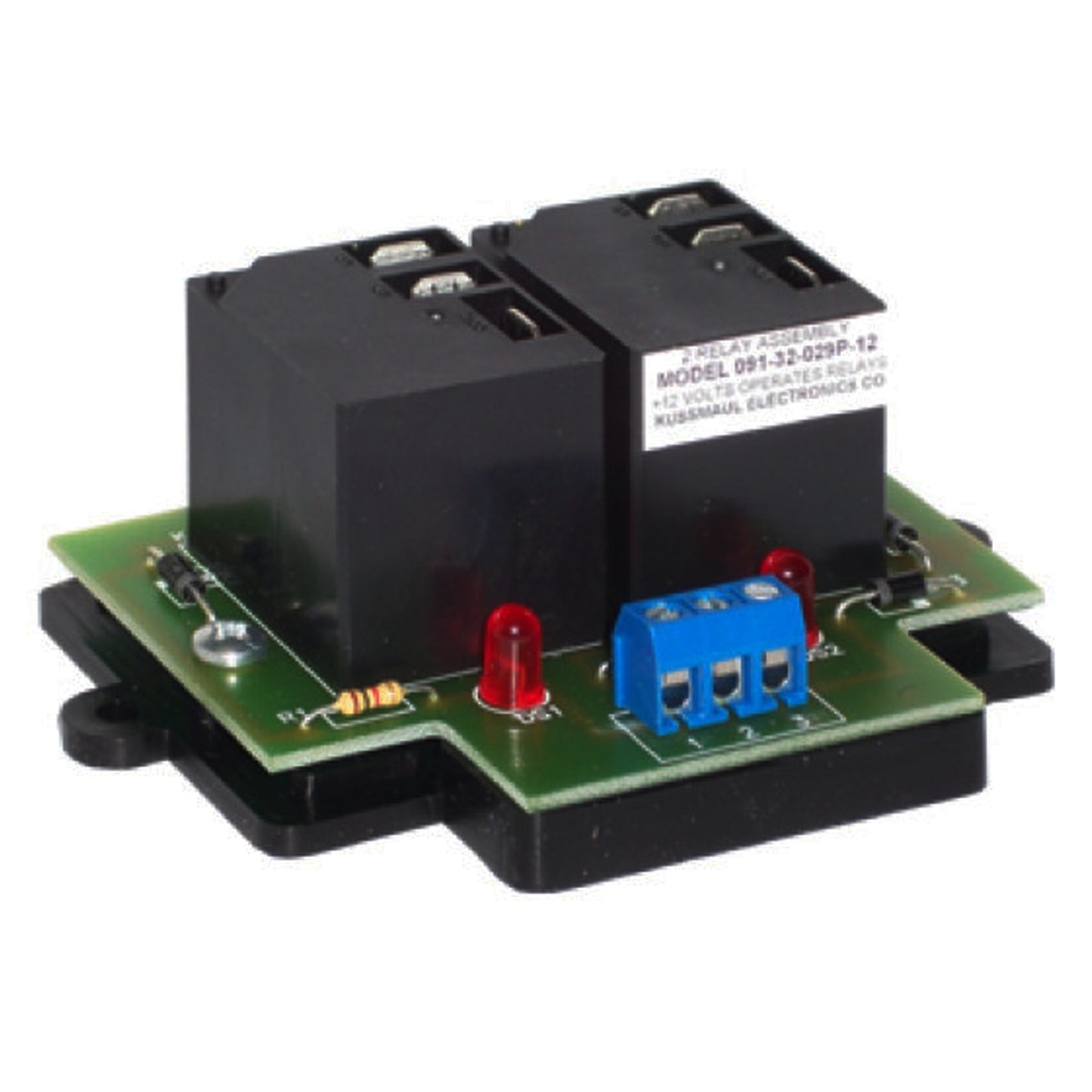

Kussmaul Relay Board 2 & Relay Board 4

The Kussmaul Relay Board is available with two or four relays, each with 30A contacts. Choose either a two or four relay that simplifies installation and wiring. Relays are mounted and energized individually from the power supplied through the terminal strip. Models are available in 12V/24V.

LED indicators adjacent to each relay illuminate whenever the relay is energized
Provides both normally closed and open contacts
• Compatible with Load Manager for easy installation
• Simplifies installation and wiring by combining multiple relays in one assembly
• Relays mounted individually and powered through a terminal strip
• Load circuits connect directly to relays using 1/4” quick disconnect terminals
• Reduces the need for mounting multiple relays, minimizes wiring to relay coils
• Operates by either supplying voltage or grounding the relay coil
