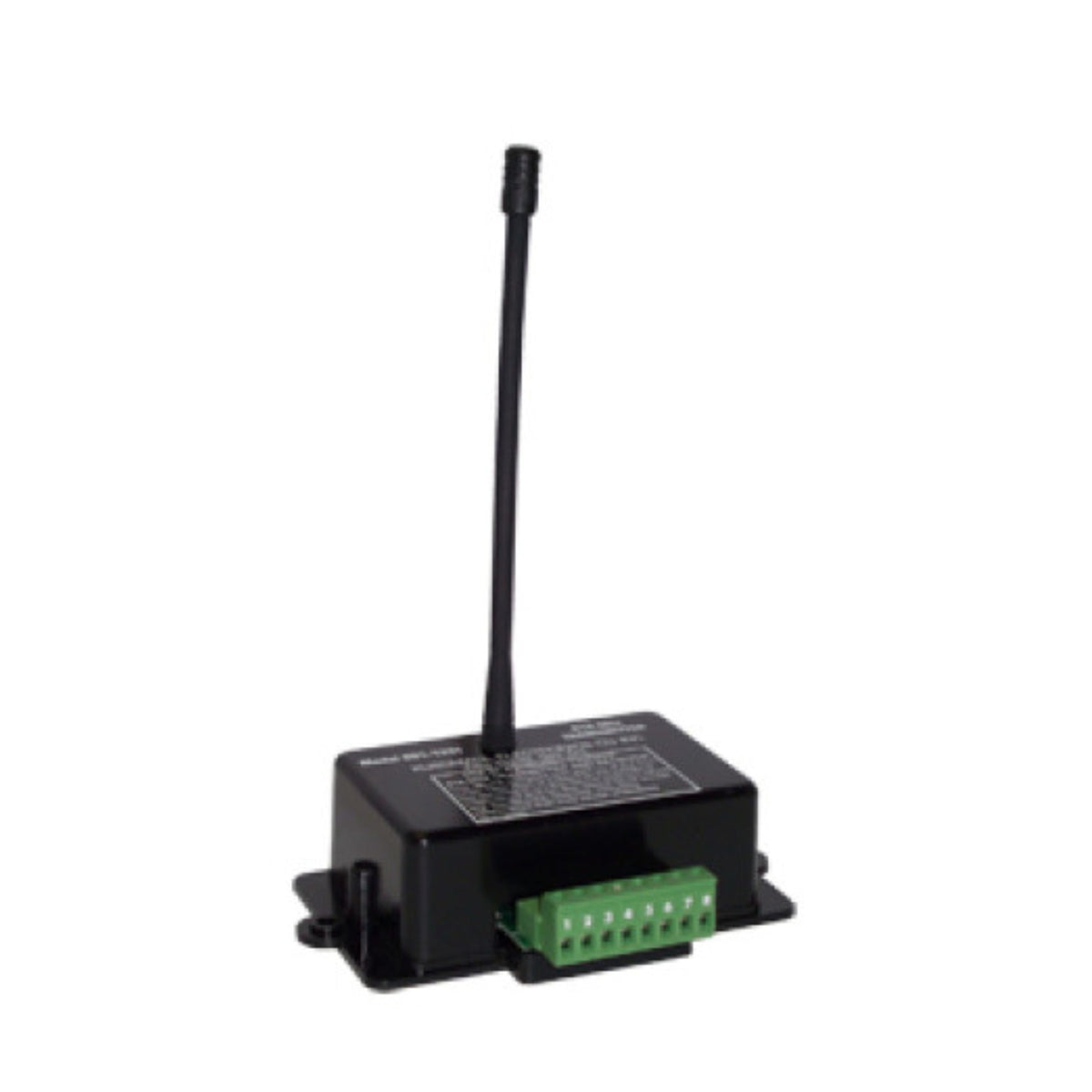

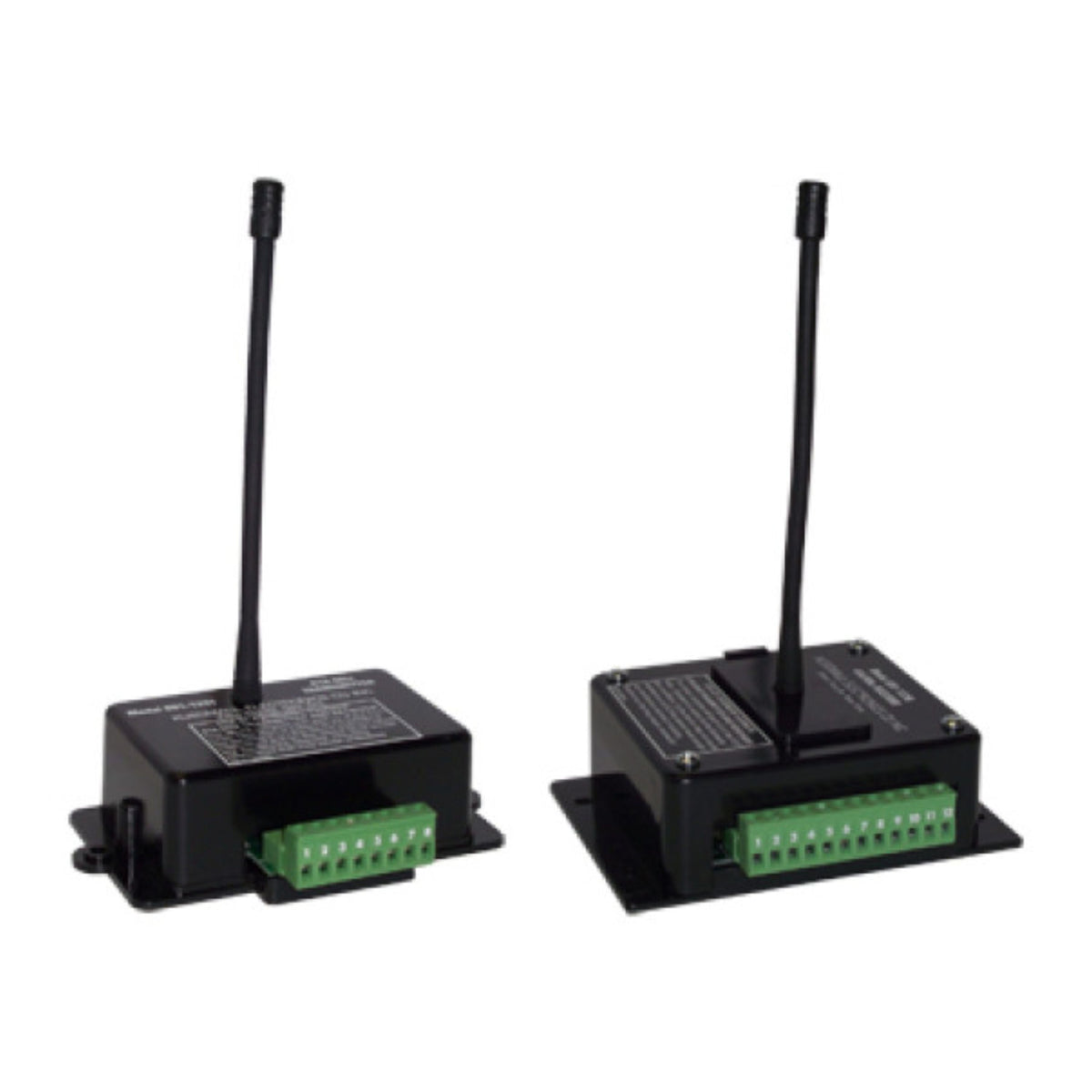

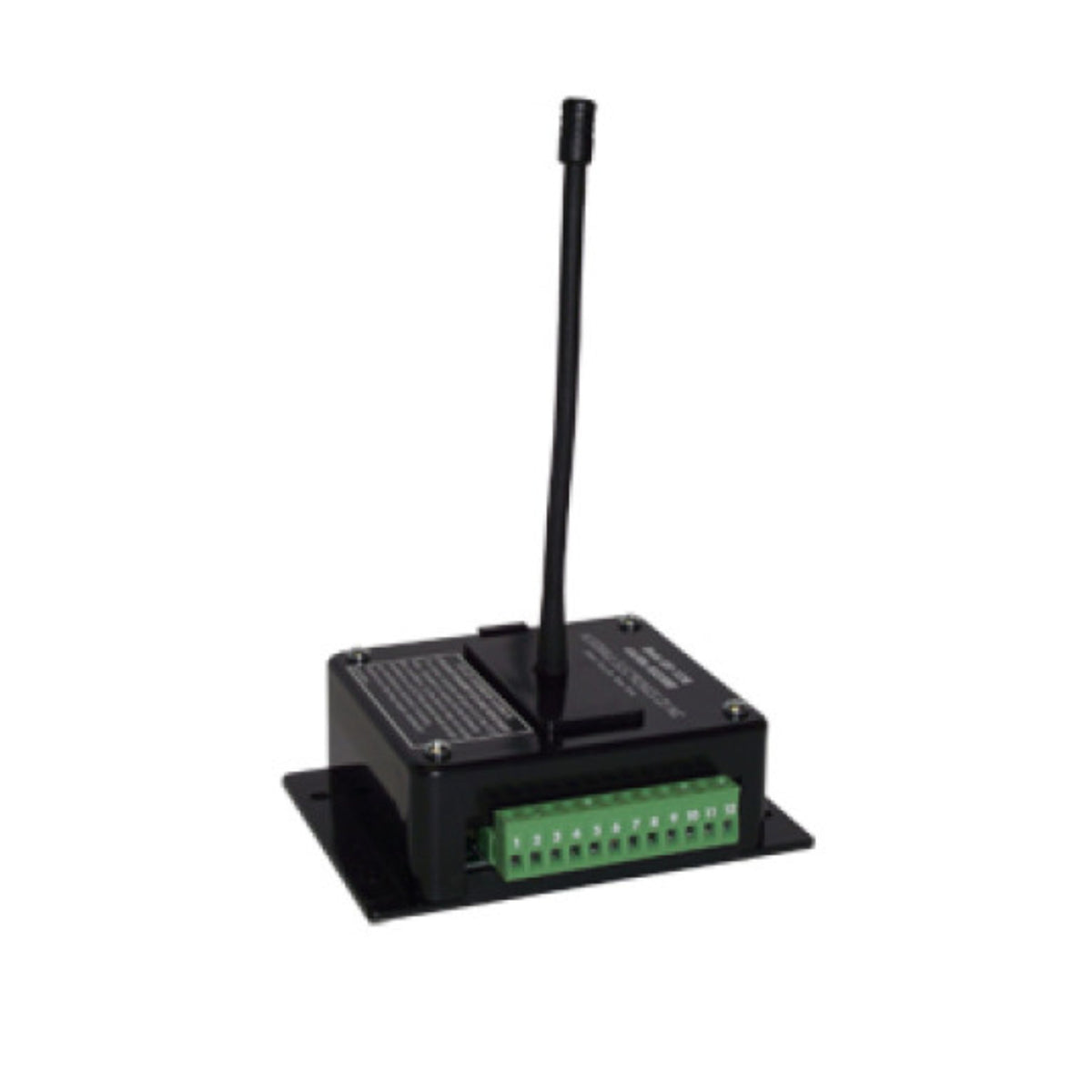

The Kussmaul Transmitter/Receiver is a wireless emergency vehicle remote control system designed to connect emergency vehicles with building electrical systems. It can activate an exhaust fan before vehicle startup and control garage doors, traffic lights, bay lighting, and other equipment through up to four receiver outputs. DIP switches provide 32 selectable codes, allowing up to 32 vehicles to operate within a single installation. Multiple transmitters can control one receiver, or individual transmitters can be paired with separate receivers.
Contact Rating: 200 Amps Continuous, 600 Amps Surge
Input Power: 120 Vac, 50/60 Hz, .015 Amps
Output Channels: 4
Trans. Codes: 32
Weight: 1 lb
Warranty: 3 Years
