Kussmaul PX Series Waterproof Junction Box

PX SERIES WATERPROOF JUNCTION BOXES

• Ideal for wiring connections onboard emergency vehicles where  connections are subject to outside conditions
• Made from rugged, non-corrosive, high impact polypropylene
• Snap-on cover provides a watertight seal
• “Universal” cut-to-fit (see diagram) cable entries accommodate a wide cable range
• Multiple connect strips with “captive” screw compression wire terminals installed
• Multiple knockouts provided for conduit access (in addition to cable entries)
• IP54 IEC Waterproof Rating

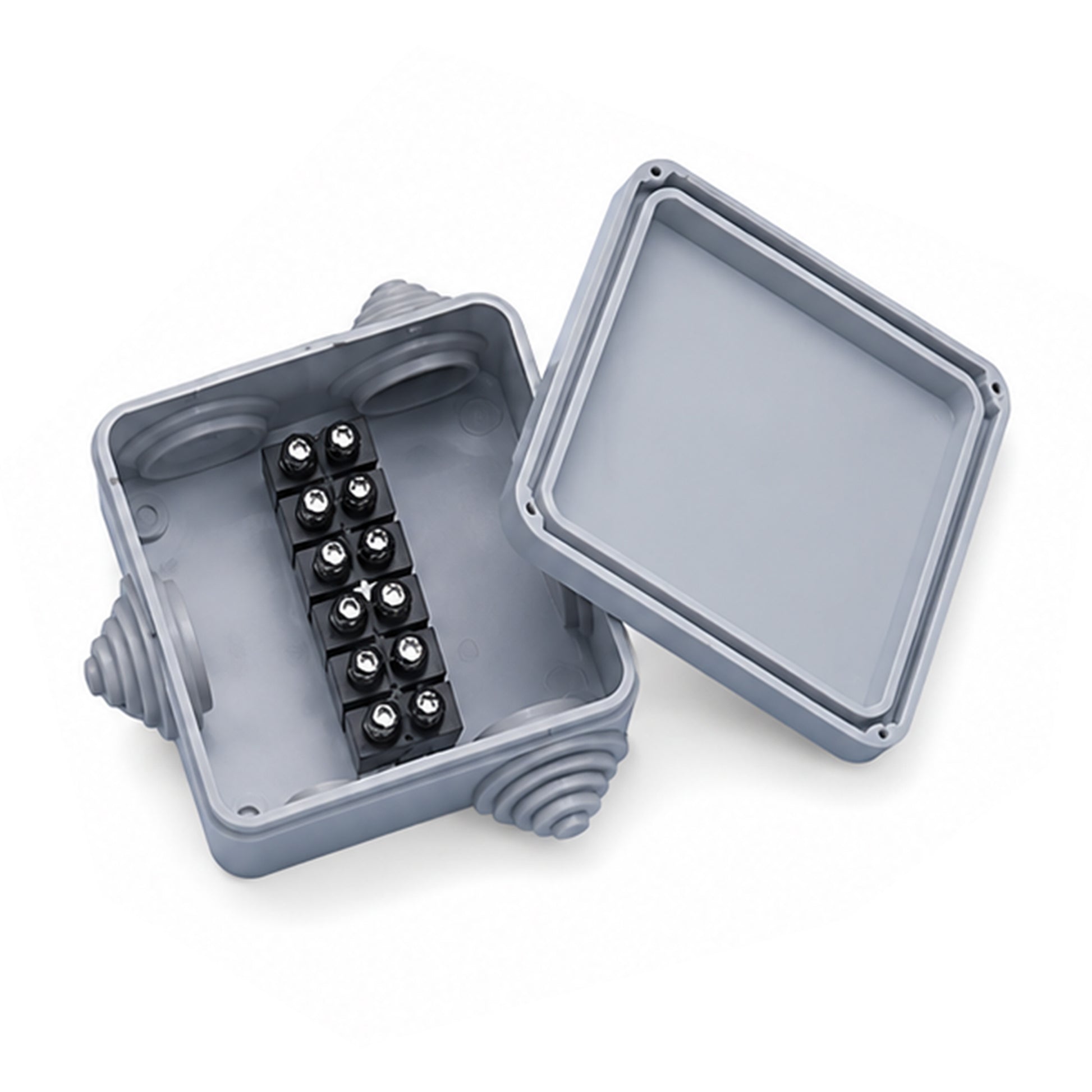

• 007-3001-0 PX-1
  No of Connector Strips: 1
  Positions per Strip: 6
  Max Wire Gauge: 16
  No of Cable Entry Points: 5
  No of Cable Entries Installed: 3
  Spare Cable Entries Provided: 2
  Cable Diameter Range: 0.14" - 0.81”
  Box Size: 2.95” L x 2.95” W x 1.66” H

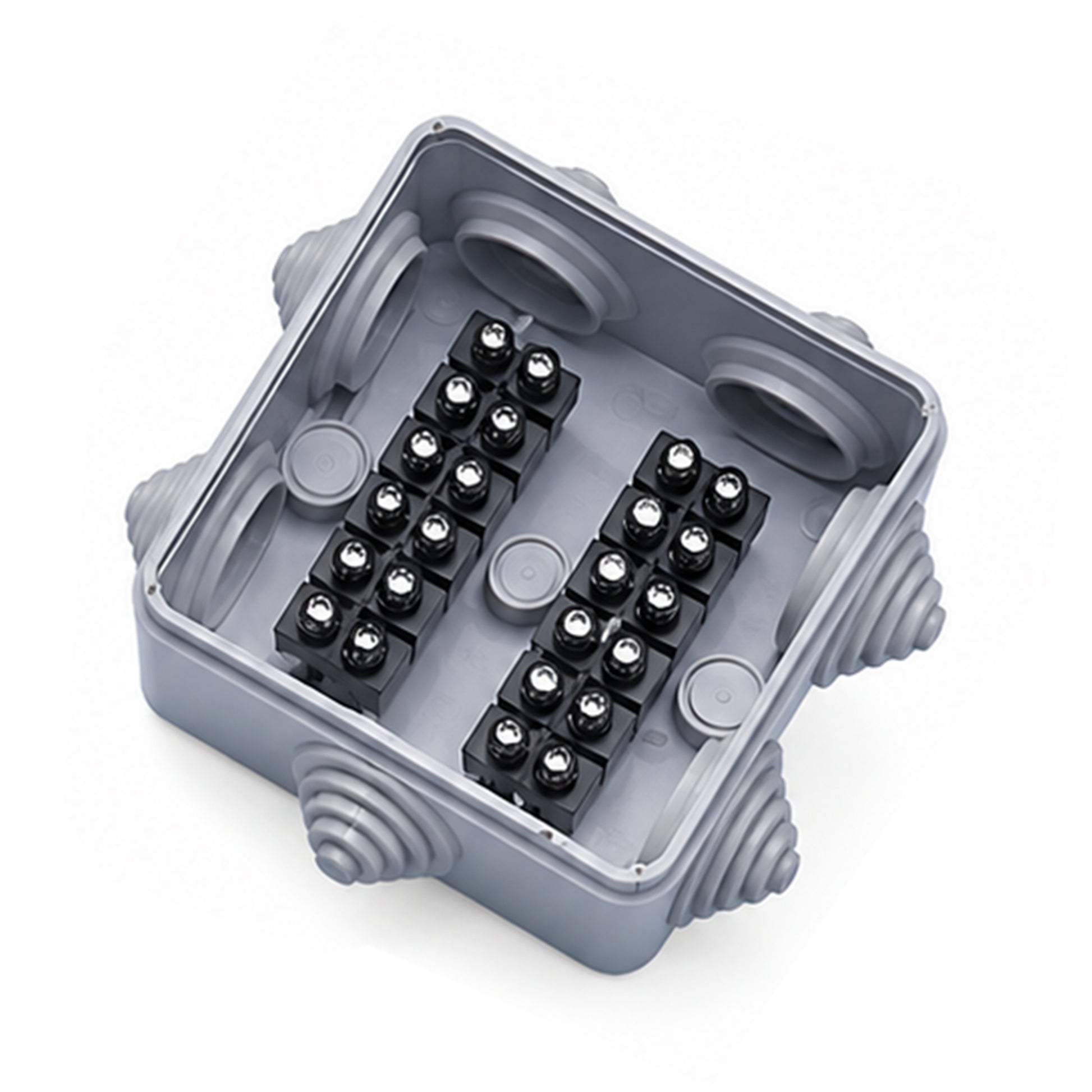

• 007-3002-0 PX-2
  No of Connector Strips: 2
  Positions per Strip: 6
  Max Wire Gauge: 16
  No of Cable Entry Points: 7
  No of Cable Entries Installed: 7
  Spare Cable Entries Provided: 0
  Cable Diameter Range: 0.14" - 0.81”
  Box Size: 3.35” L x 3.35” W x 1.66” H

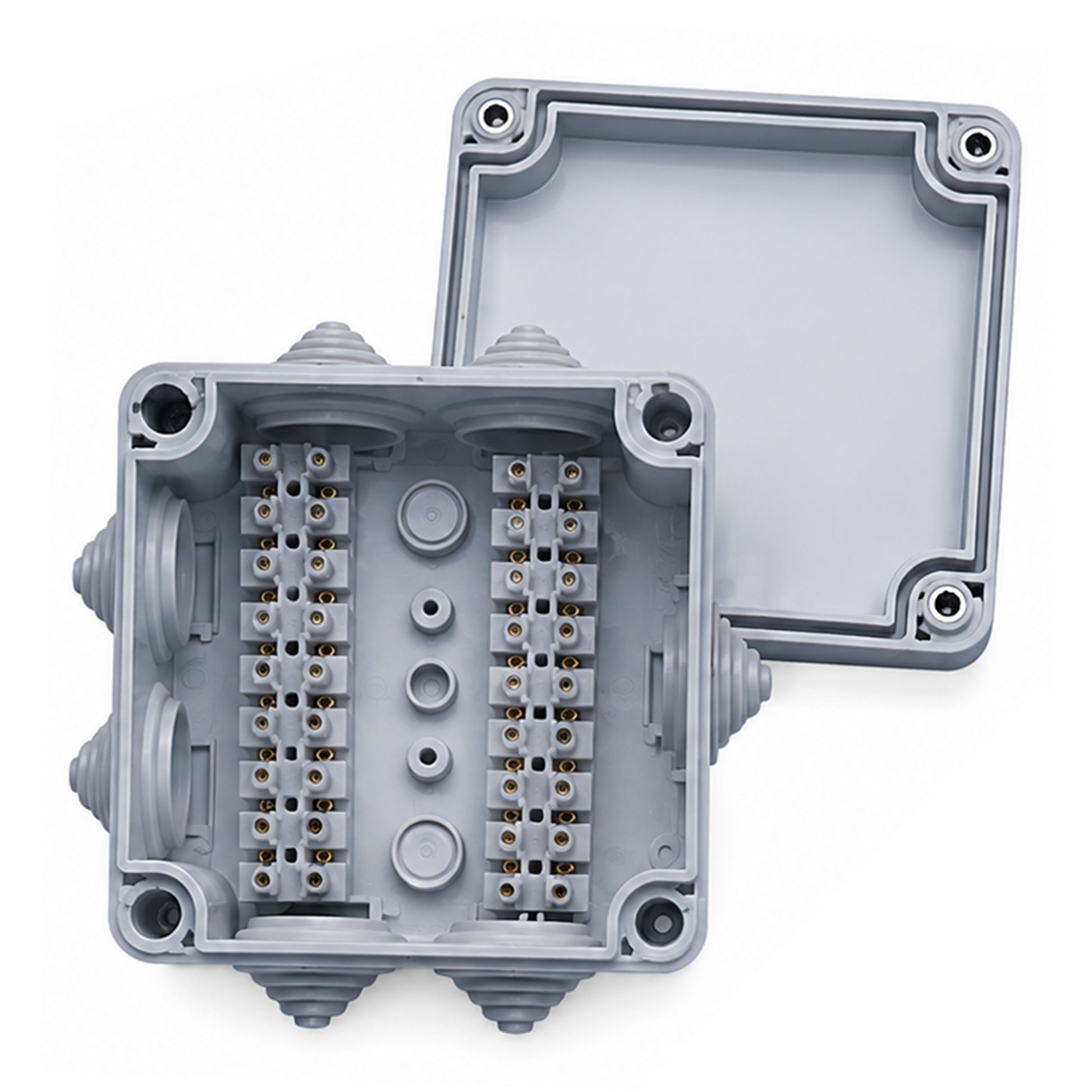

• 007-3003-0 PX-3
  No of Connector Strips: 2
  Positions per Strip: 9
  Max Wire Gauge: 16
  No of Cable Entry Points: 7
  No of Cable Entries Installed: 7
  Spare Cable Entries Provided: 0
  Cable Diameter Range: 0.14" - 0.99"
  Box Size: 4.45” L x 4.45” W x 2.29” H
