Kussmaul Digital Metering Display

$563.40 USD

Sale Sold out

Model 023-4346-0 - DCE DC Energy Display 023-4348-0 - DCV DC Volt Meter Display 023-4349-0 - ACE AC Energy Display 023-4350-0 - TG-3 Temperature Display

Built to order

Ships in 2–4 weeks

Tracking sent when it ships.

Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.

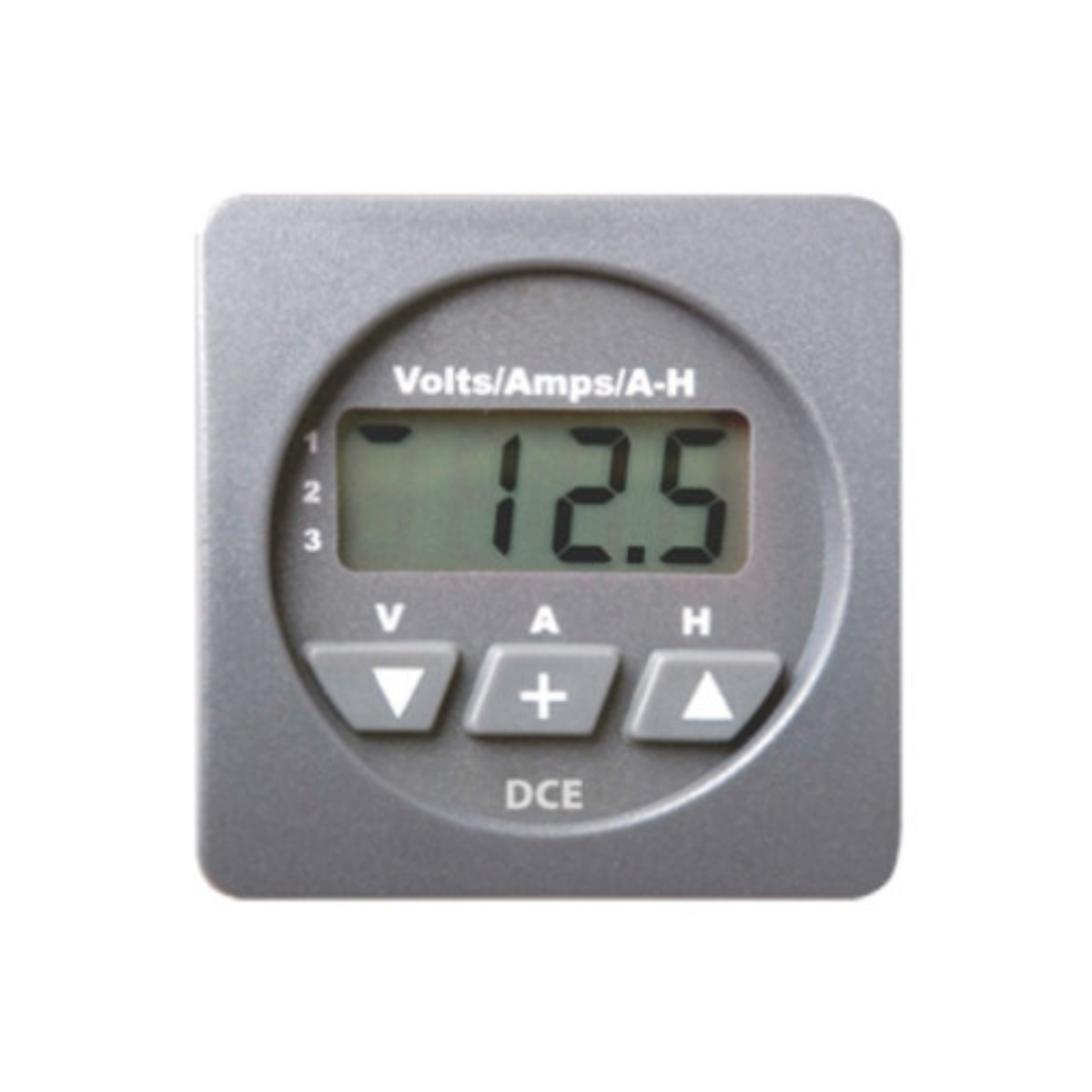

023-4346-0 DC Energy Display
Displays 12 or 24 volts
Displays up to 500 amps
Displays energy used and remaining for up to 3,000 amp-hour capacity
Monitor voltage on up to three separate banks of batteries
Monitors Charge / Discharge Amperage
Monitors Total Energy: Amp-Hours or Percent of Charge
Alarms: High / low voltage and low amp-Hours remaining
3 year warranty

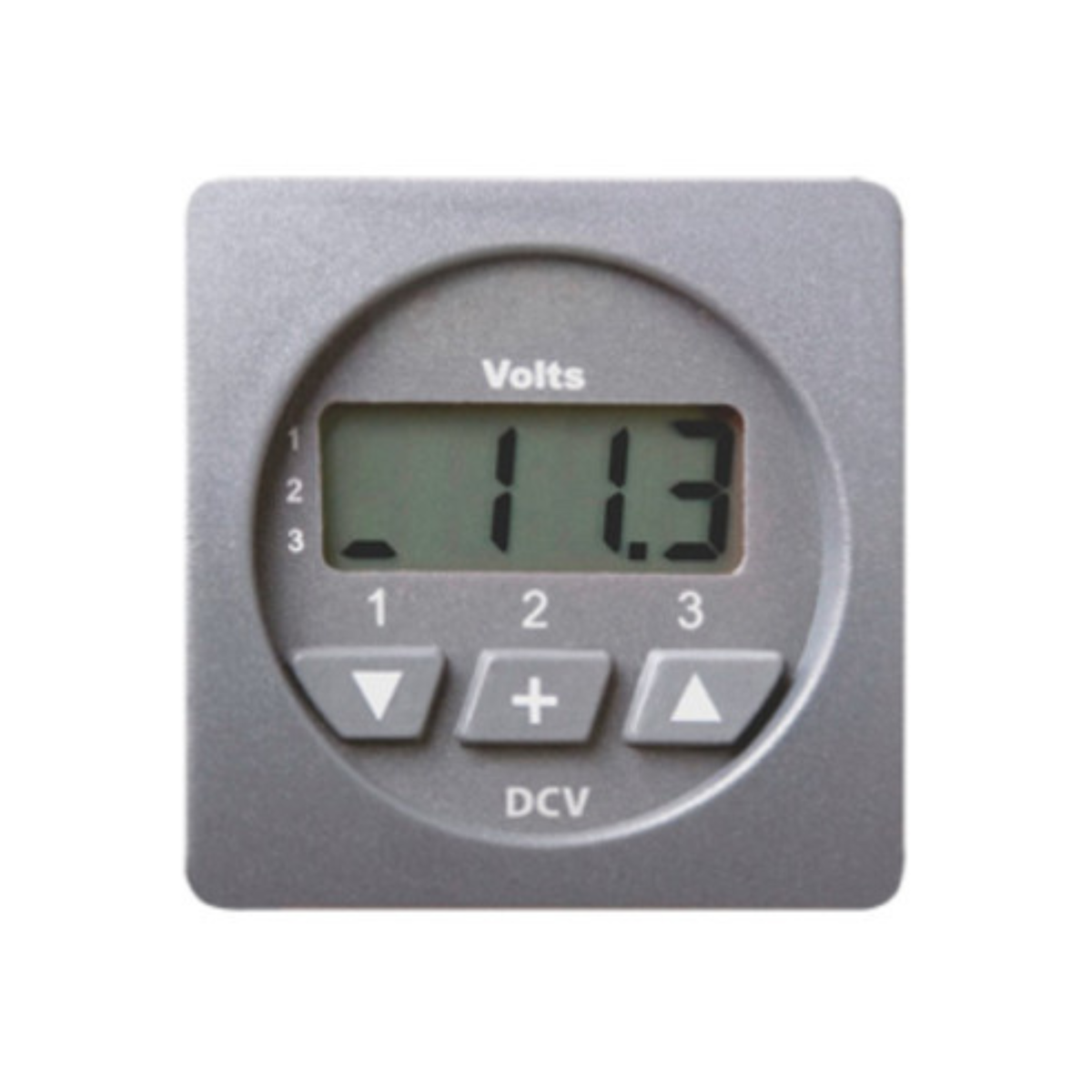

23-4348-0 DCV DC Volt Meter Display
Digital disp0lay
Displays 12 or 24 volts for three battery banks
Built-In hi / low voltage alarm
Wires directly to batteries
Push button selection of battery bank reading
Watertight
3 year warranty

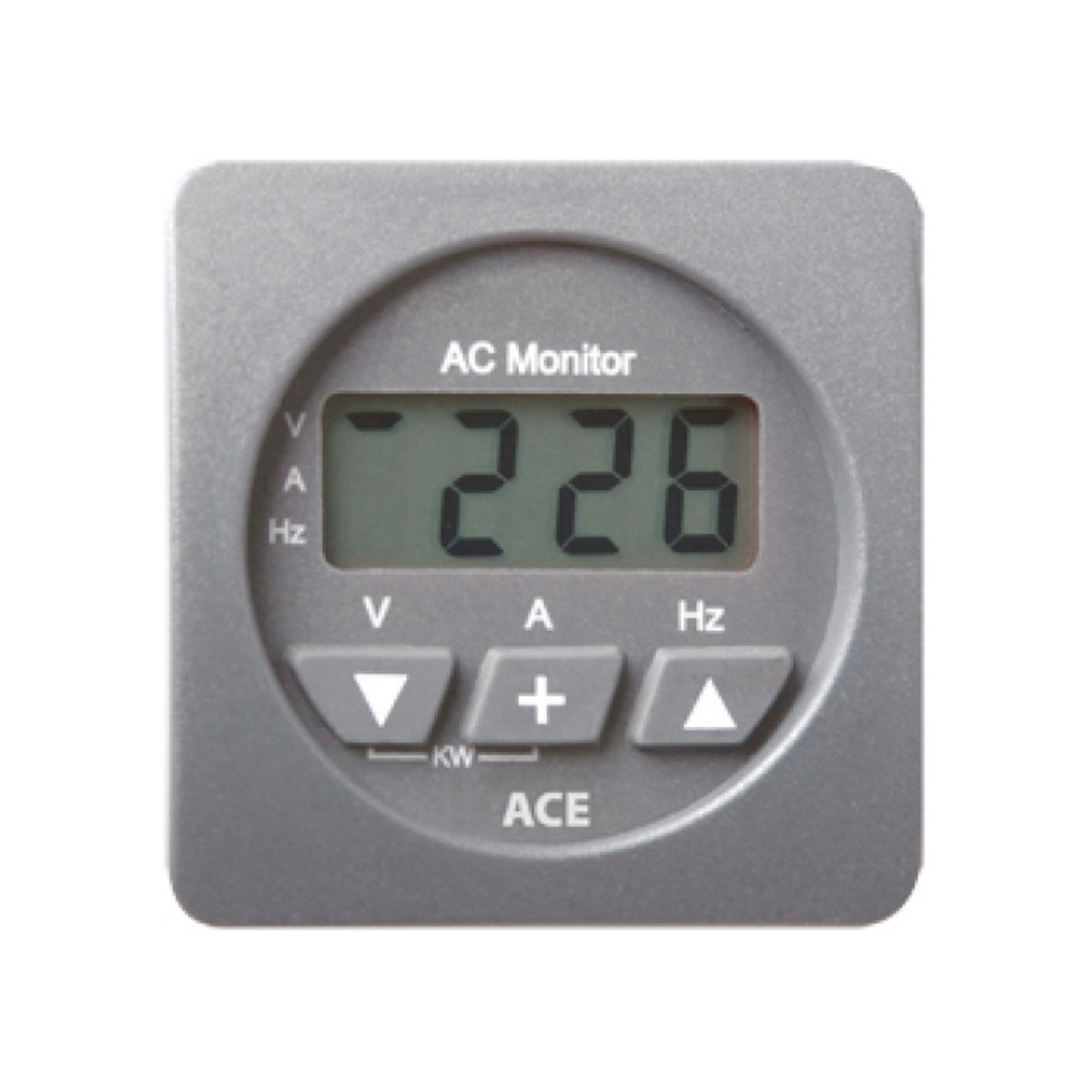

023-4349-0 ACE AC Energy Display
For 120/240V systems
Alarms circuits for high/low voltage and high/low frequency
12 or 24 volt source required to power meter
Weatherproof instrument face
Display selection via push button:
90-300V (True RMS)
0-150A
40-70 Hz. Frequency
0-45 Kw Power Output
3 year warranty

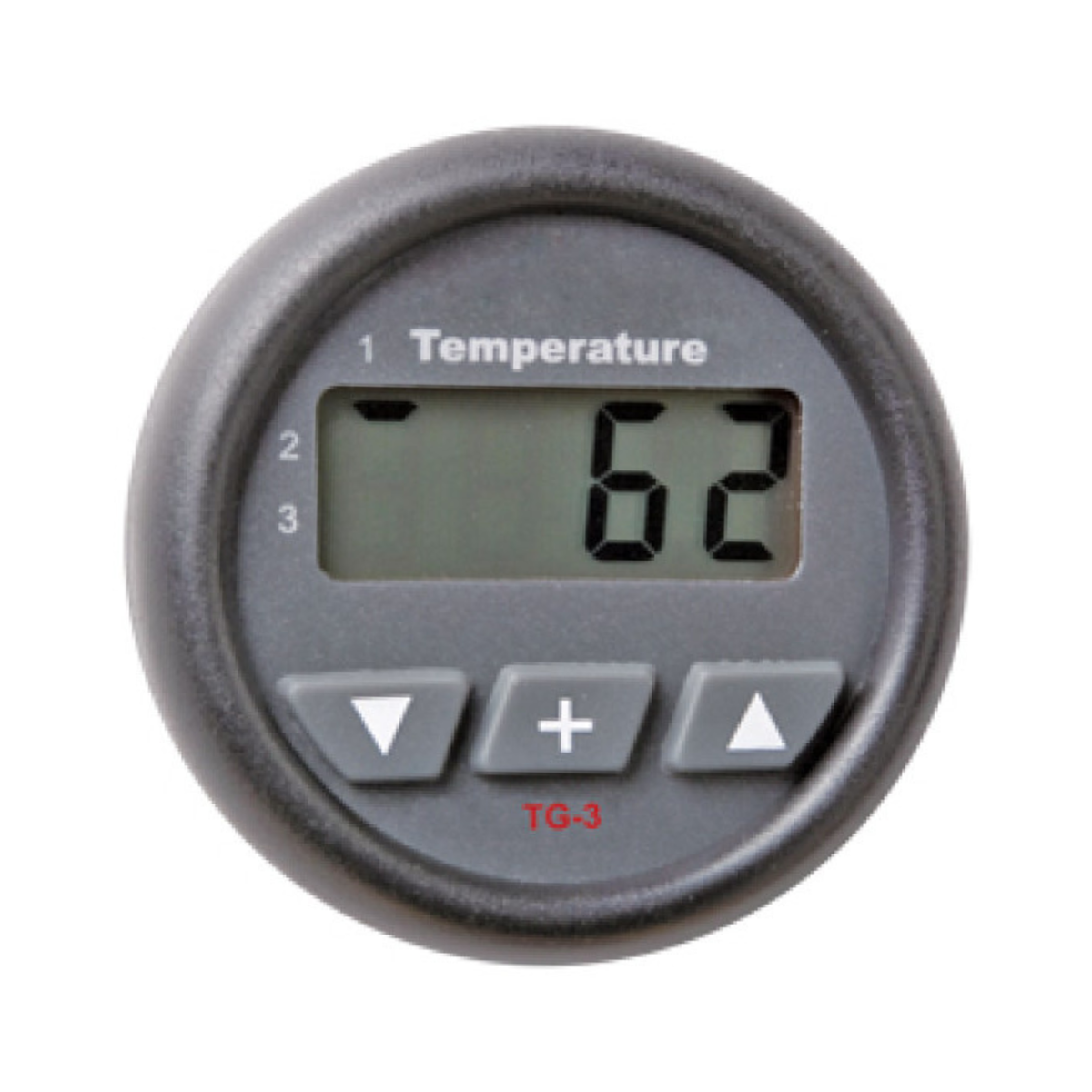

023-4350-0 TG-3 Temperature Display
Sensor range: -20 to 160 F (-29 to 71 C)
3 zone input
LCD read out accurate within 1% +/- 1 degree, full scale
5 level back lighting "ON" LED display
Programmable high / low temperature alarm at 85 DB
Waterproof face fits in standard 2.125" instrument hole
Includes one remote temperature sensor, with 20' cable
3 year warranty
