Kussmaul BX Series Weatherproof Junction Boxes

BX SERIES WEATHERPROOF JUNCTION BOXES

• Provides secure, weatherproof protection of the wiring connections
• Rugged cast aluminum box with white enamel finish
• Easy wiring access through multiple grommeted cable entries
• Removable connector strips secure conductors with compression screws
• No terminals required, see the matrix below for the number of connector positions and wire gauges

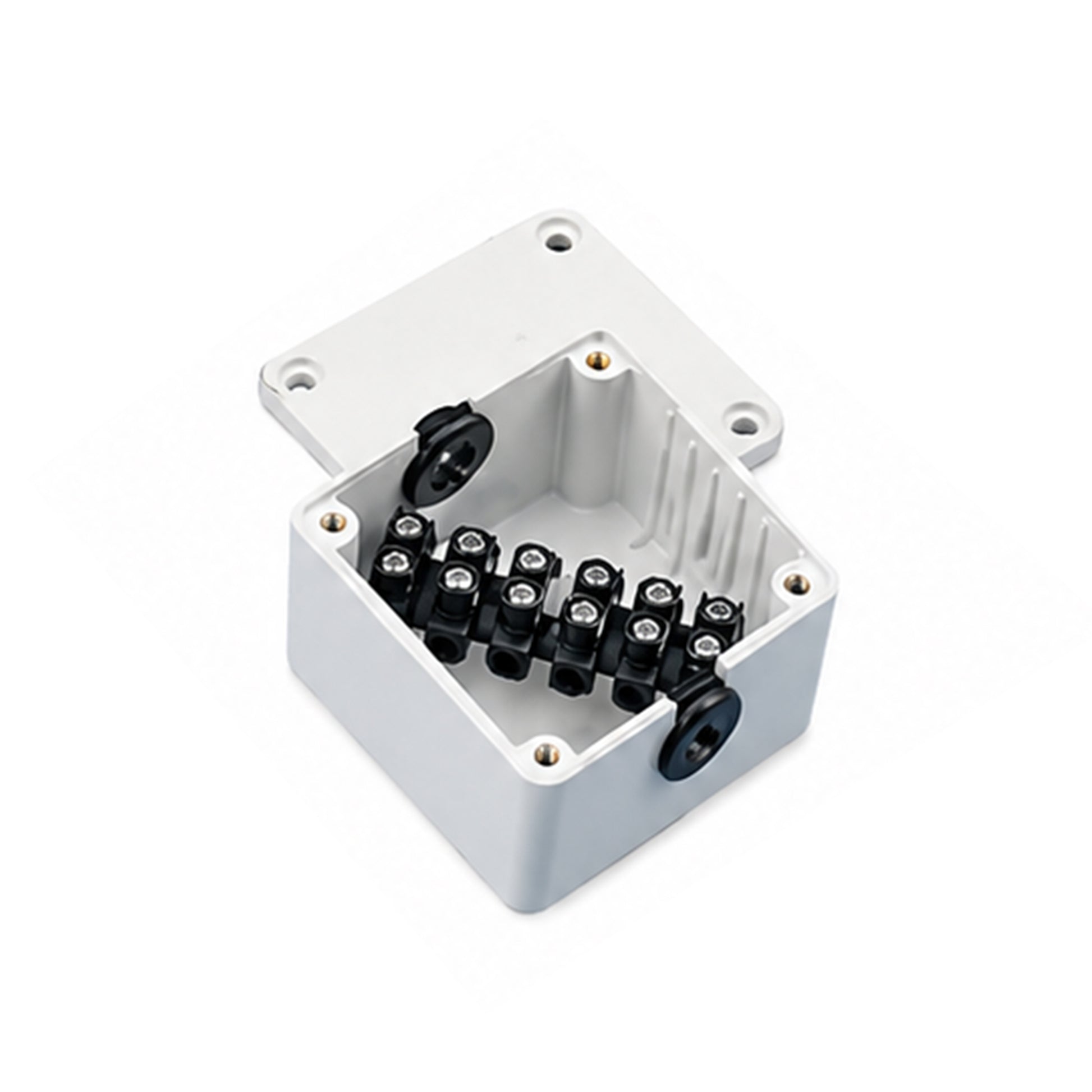

• 007-6001-0 BX-1
  No of Connector Strips: 1
  Positions per Connector Strip: 6
  Max Wire Gauge: 16
  Max Amps (per position): 6
  Cable Entry Points: 2
  Max Cable Diameter: 0.25”
  Box Size: 2.0” x 2.0” x 1.2”

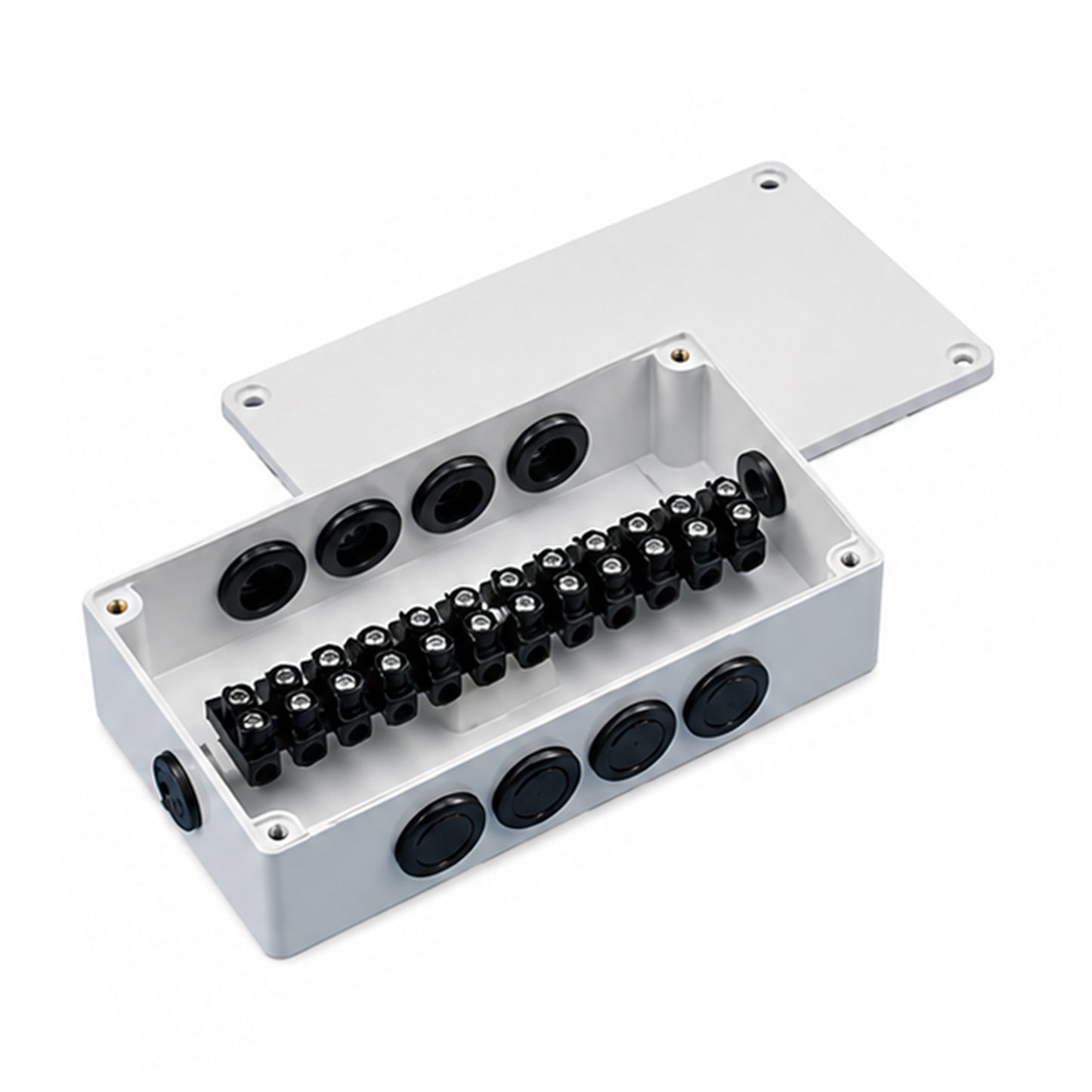

• 007-6002-0 BX-2
  No of Connector Strips: 1
  Positions per Connector Strip: 12
  Max Wire Gauge: 16
  Max Amps (per position): 6
  Cable Entry Points: 8
  Max Cable Diameter: 0.37”
  Box Size: 4.4” x 2.4” x 1.2”

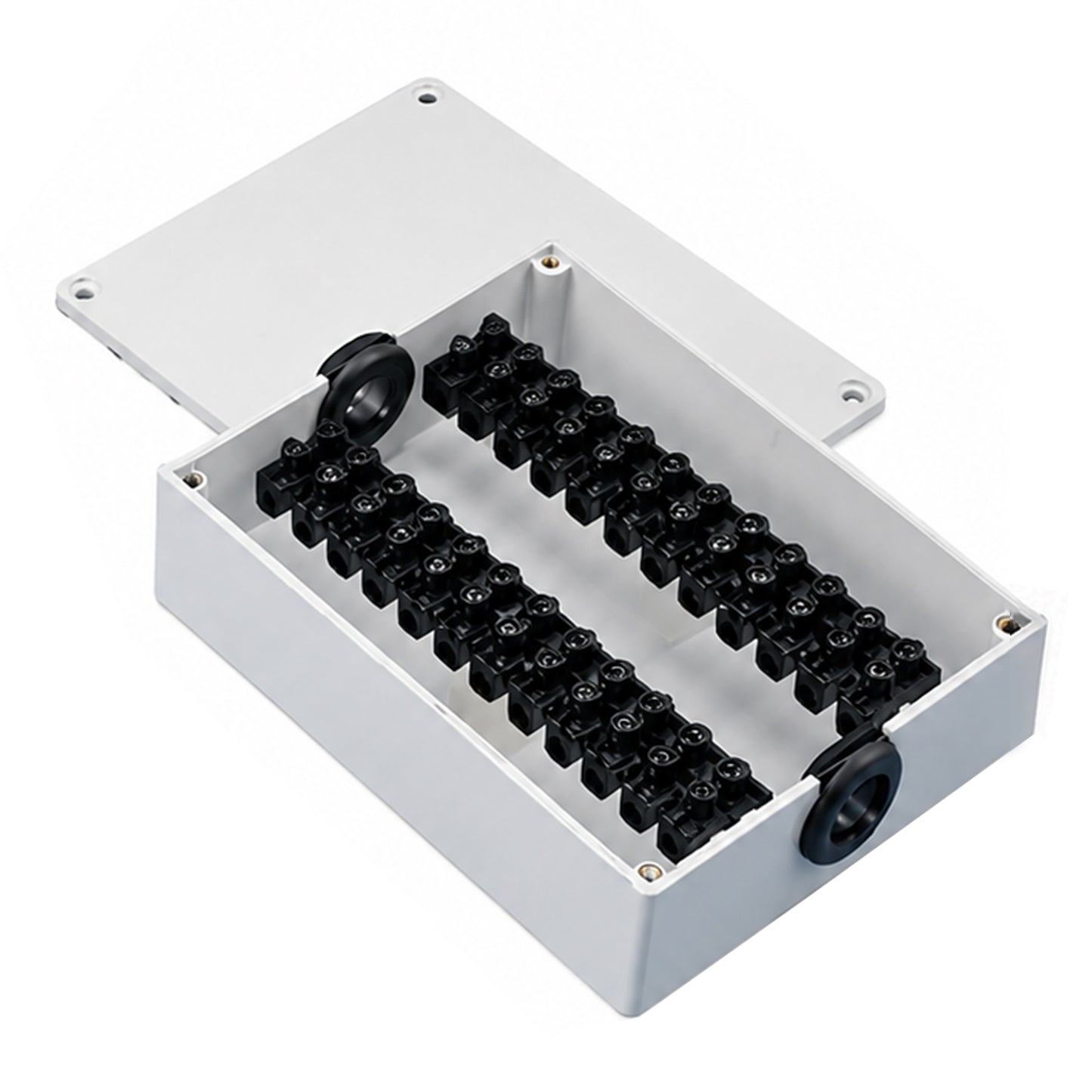

• 007-6003-0 BX-3
  No of Connector Strips: 2
  Positions per Connector Strip: 11
  Max Wire Gauge: 14
  Max Amps (per position): 10
  Cable Entry Points: 2
  Max Cable Diameter: 0.59”
  Box Size: 4.7” x 3.7” x 1.3”
