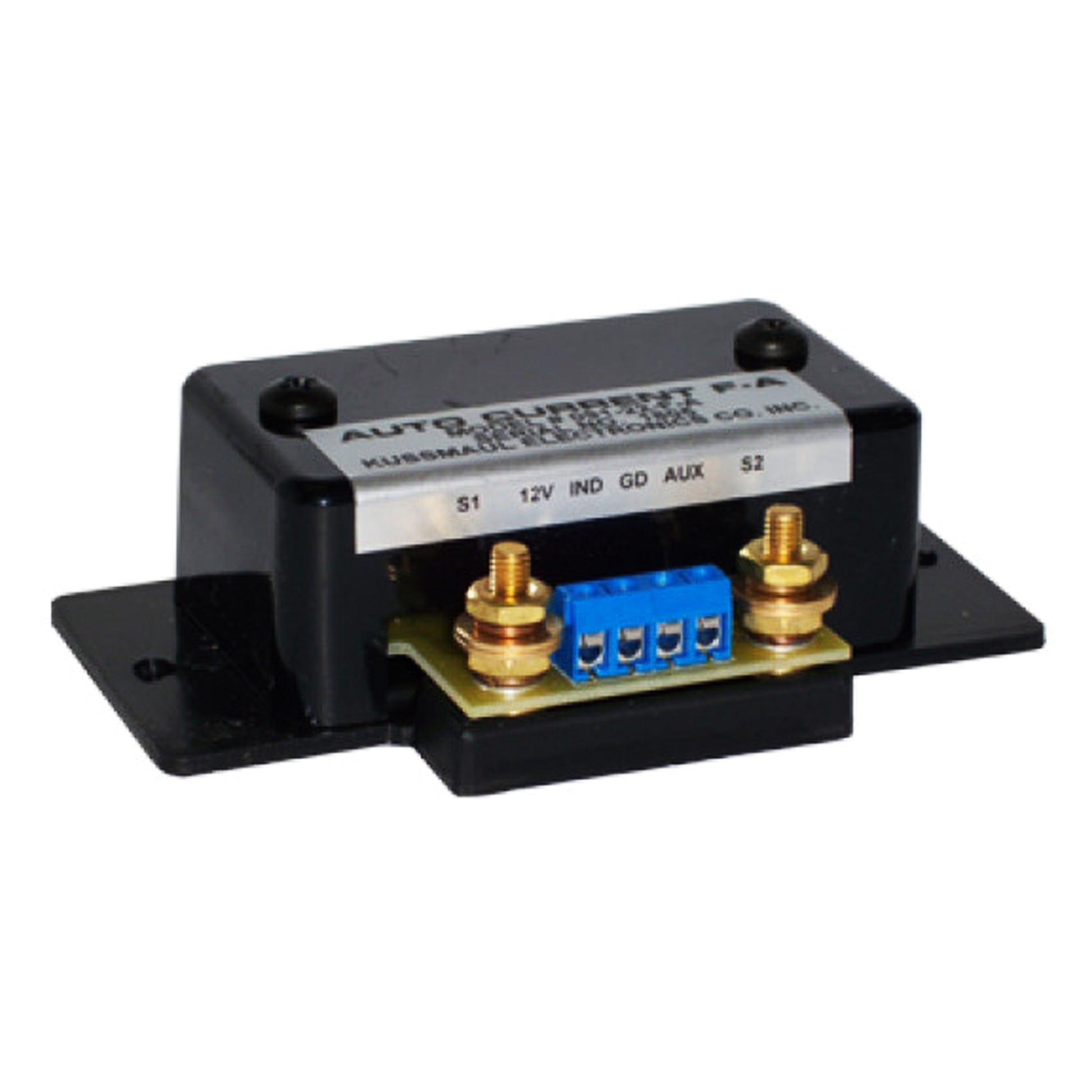

Kussmaul Auto Current F-A

The Auto Current F-A is an Auto Current F with an  auxiliary input, which when grounded causes the output relay to operate.

• Senses current and includes auxiliary input, which operates when grounded
• Provides remote indication and simplifies vehicle wiring
• Produces flashing output to a warning indicator light
• Operates a single indicator from multiple inputs
• Auto Current F-A is an Auto Current F with auxiliary input, activating the output relay to cycle ON and OFF, creating a flashing signal
• Current sensing allows use as an open-door detector
• Auxiliary input can connect to multiple parallel switches, activating the unit with any switch closure or current sensing
• Ideal for a “DO NOT MOVE VEHICLE” door-open indicator
• Sense terminals are wired in series with power to compartment lights
• Standard unit supplies +12V to the indicator; available in -G model for ground-based operation
• 091-22F-A
  Resistance Ohms: 0.01
  Min. Operating Amps: 1.0
  Max. Operating Amps: 30
  Switch Rating 12V: 5A
  Dimensions: 2.63” L x 4.50” W x 1.50” H
• 091-22F-A-6
  Resistance Ohms: 0.2
  Min. Operating Amps: 0.10
  Max. Operating Amps: 4
  Switch Rating 12V: 5A
  Dimensions: 2.63” L x 4.50” W x 1.50” H
