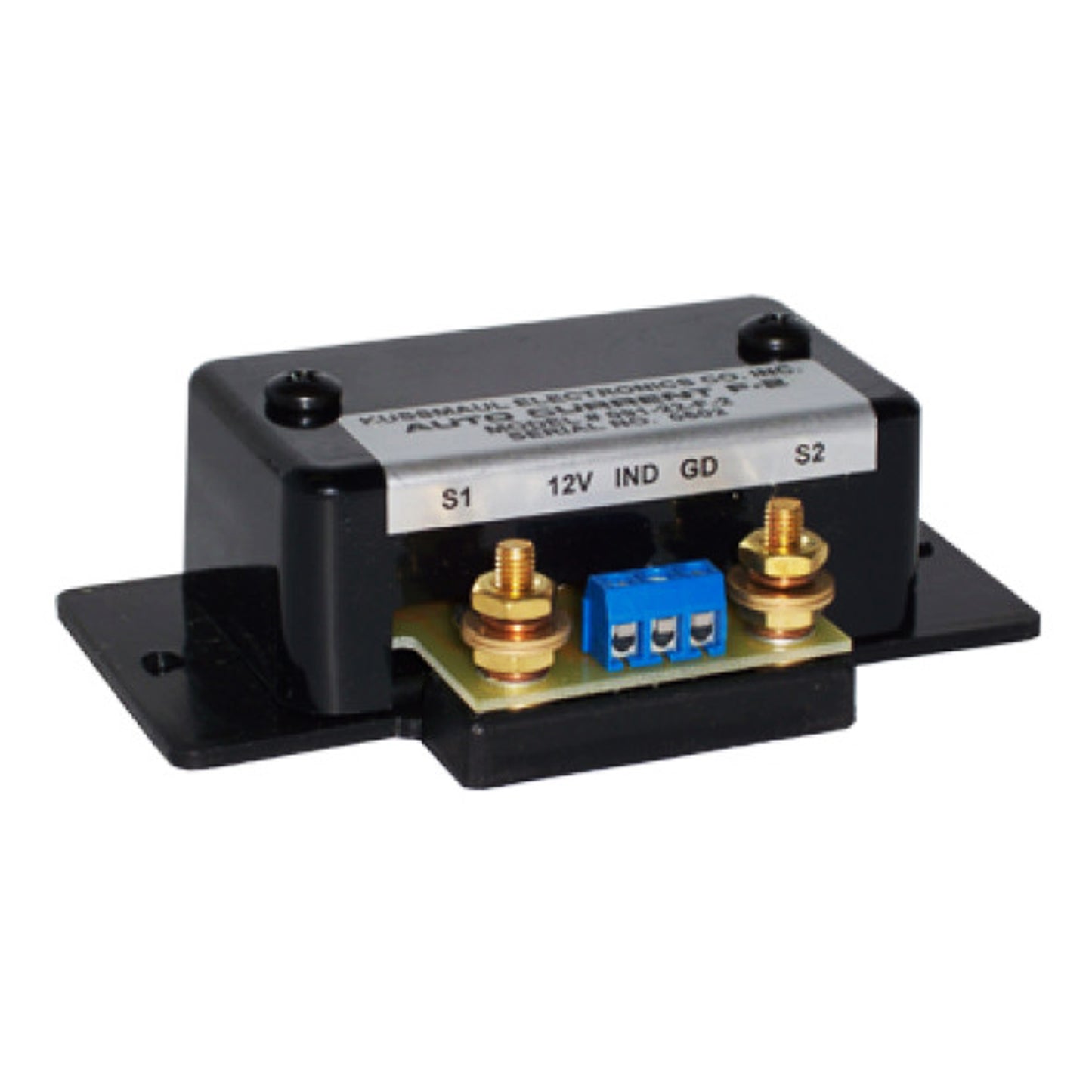

Kussmaul Auto Current F

The Auto Current F detects current and closes a switch when the sensed current flows to provide a remote indication. Designed for applications where a remote indicator must be illuminated when one or more lights or other loads are energized.

• Senses current flow and provides remote indication
• Simplifies vehicle wiring by operating a single indicator from multiple loads
• Produces a flashing output signal to an indicator light
• Illuminates the indicator whenever any connected lamp or load is active
• Indicator circuit can be isolated from the sensed circuit or powered by the same battery
• Built-in timer flashes the indicator lamp at one-second intervals for high visibility
• Standard unit supplies +12V to the indicator; available in -G model for ground-based operation
• 091-22-100-F
  Resistance Ohms: 0.0003
  Min. Operating Amps: 4
  Max. Operating Amps: 100
  Switch Rating 12V: 5A
  Dimensions: 2.63” L x 4.50” W x 1.50” H
• 091-22F-2
  Resistance Ohms: 0.01
  Min. Operating Amps: 1.0
  Max. Operating Amps: 30
  Switch Rating 12V: 5A
  Dimensions: 2.63” L x 4.50” W x 1.50” H
• 091-22F-3
  Resistance Ohms: 0.01
  Min. Operating Amps: 0.5
  Max. Operating Amps: 30
  Switch Rating 12V: 5A
  Dimensions: 2.63” L x 4.50” W x 1.50” H
• 091-22F-5
  Resistance Ohms: 0.02
  Min. Operating Amps: 0.25
  Max. Operating Amps: 10
  Switch Rating 12V: 5A
  Dimensions: 2.63” L x 4.50” W x 1.50” H
• 091-22F-6
  Resistance Ohms: 0.02
  Min. Operating Amps: 0.10
  Max. Operating Amps: 4
  Switch Rating 12V: 5A
  Dimensions: 2.63” L x 4.50” W x 1.50” H
