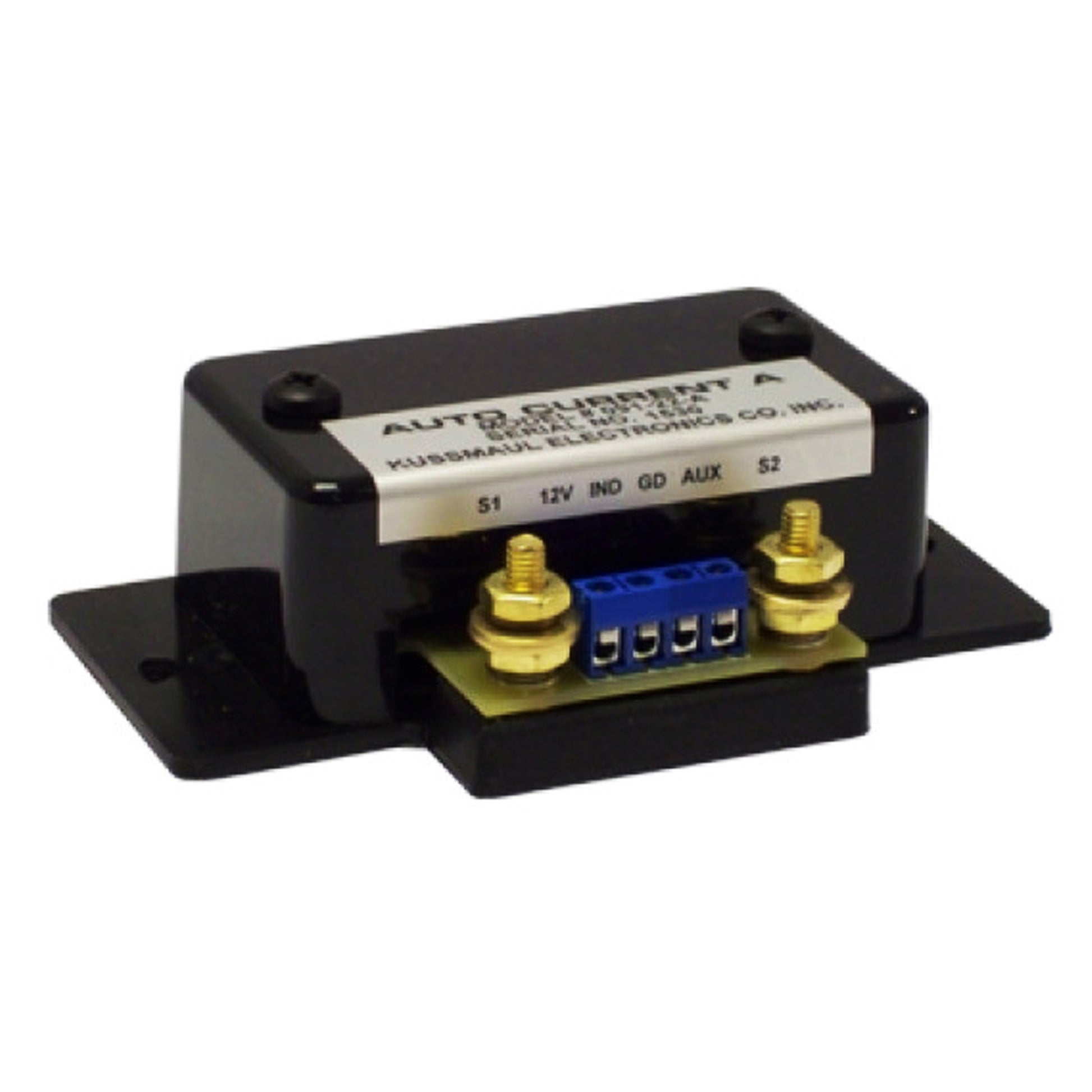

Kussmaul Auto Current A

The Auto Current A is an Auto Current with auxiliary input, which when grounded causes the output relay to operate.

• Simplifies vehicle wiring by activating a single indicator from multiple inputs
• Senses current and includes auxiliary input, which operates when grounded
• Auxiliary input can connect to multiple parallel switches, activating the unit when any switch is closed
• Auto Current A cycles output relay ON and OFF when activated, creating a signal
• Current sensing allows use as an open-door detector
• Ideal for applications like a “DO NOT MOVE VEHICLE” indicator
• Sense terminals are wired in series with power to compartment lights
• Standard unit provides +12V to indicator; available in -G model for ground based operation
• 091-22-A
  Resistance Ohms: 0.01
  Min. Operating Amps: 1.0
  Max. Operating Amps: 30
  Switch Rating 12V: 5A
  Dimensions: 2.63” L x 4.00” W x 1.50” H
  Warranty: 3 years
• 091-22-A-6
  Resistance Ohms: 0.2
  Min. Operating Amps: 0.10
  Max. Operating Amps: 4
  Switch Rating 12V: 5A
  Dimensions: 2.63” L x 4.00” W x 1.50” H
  Warranty: 3 years
