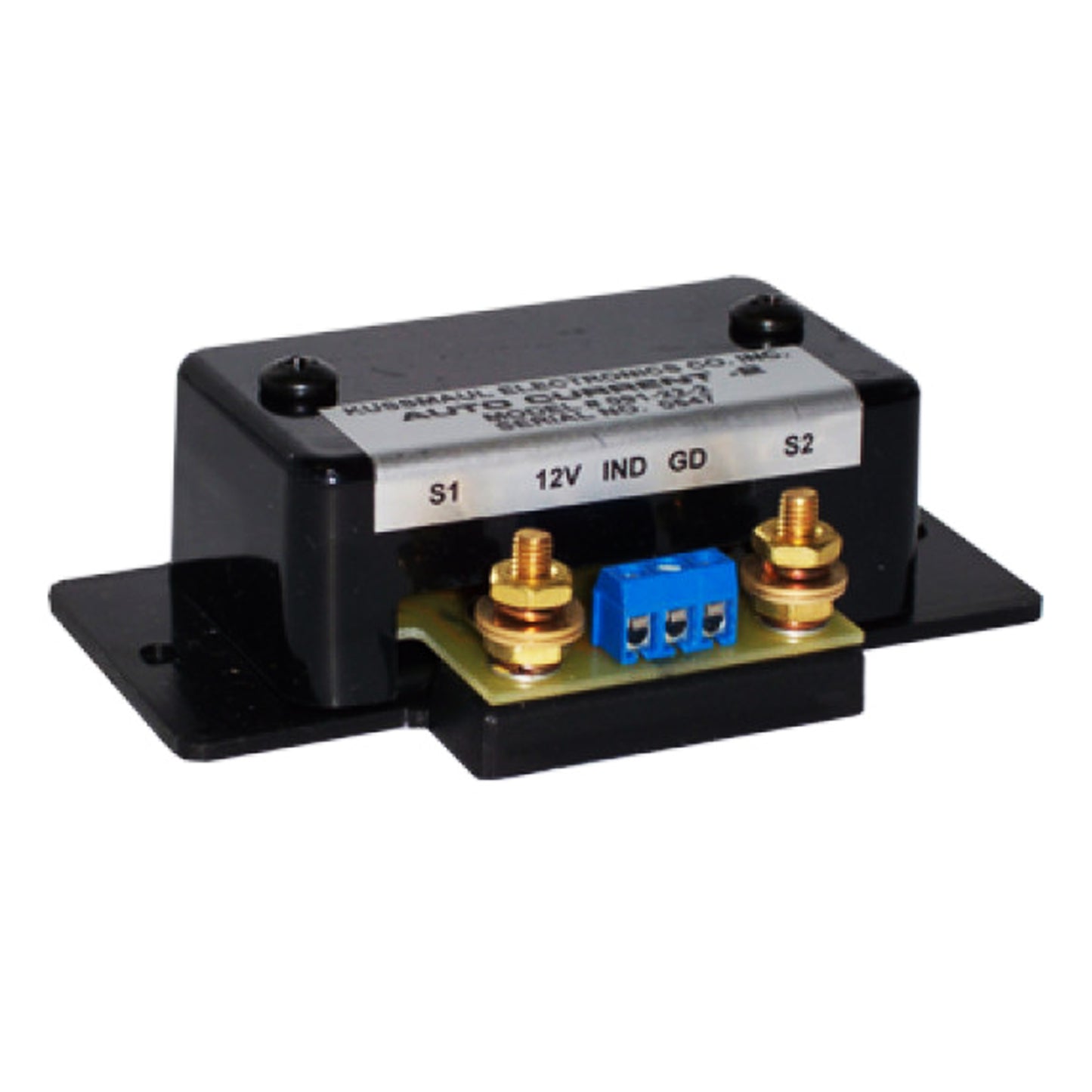

Kussmaul Auto Current

The Auto Current detects current flow and closes a relay providing a remote indication. Designed for applications where a remote indicator/warning light must be illuminated when one or more lights or other loads are energized. By detecting load current, any lamp or other load will cause the indicator to illuminate. The indicator circuit may be completely isolated from the circuit being sensed, or may be operated from the same battery.

• Senses current flow and provides remote indication that a load is operating
• Simplifies vehicle wiring by activating a single indicator from multiple inputs
• Detects current and closes a relay to provide a remote indication
• Ideal for applications needing a remote indicator or warning light when multiple loads are energized
• Illuminates the indicator whenever any connected lamp or load is active
• Indicator circuit can be isolated from the sensed circuit or powered by the same battery
• Standard unit supplies +12V to the indicator; available in -G model for ground-based operation

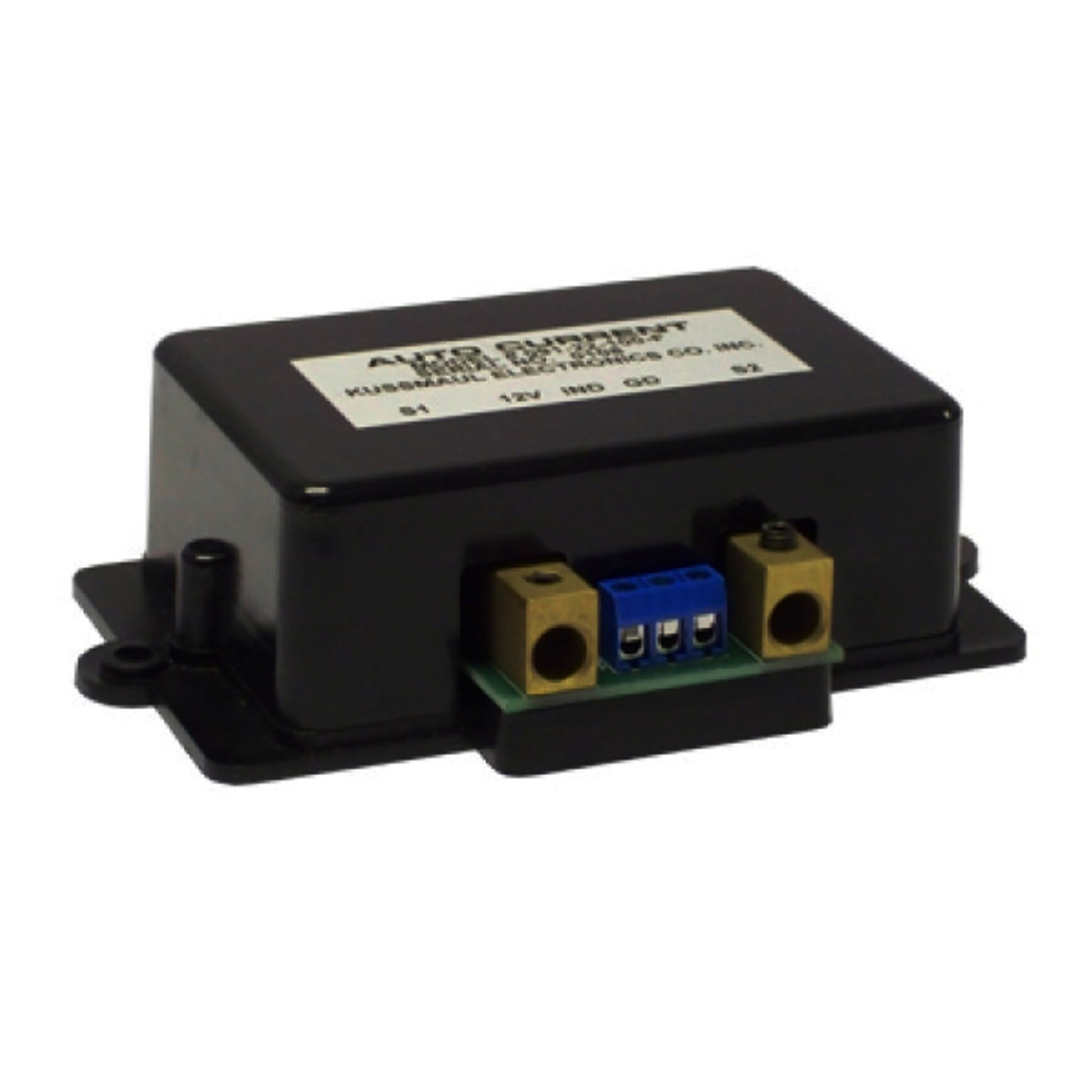

• 091-22-100
  Resistance Ohms: 0.0003
  Min. Operating Amps: 4.0
  Max. Operating Amps: 100
  Switch Rating 12V: 5A
  Dimensions: 2.63” L x 4.00” W x 1.50” H
  Warranty: 3 years

• 091-22-2
  Resistance Ohms: 0.01
  Min. Operating Amps: 1.0
  Max. Operating Amps: 30
  Switch Rating 12V: 5A
  Dimensions: 2.63” L x 4.00” W x 1.50” H
  Warranty: 3 years

• 091-22-3
  Resistance Ohms: 0.01
  Min. Operating Amps: 0.5
  Max. Operating Amps: 30
  Switch Rating 12V: 5A
  Dimensions: 2.63” L x 4.00” W x 1.50” H
  Warranty: 3 years

• 091-22-4
  Resistance Ohms:
  Min. Operating Amps:
  Max. Operating Amps:
  Switch Rating 12V:
  Dimensions:
  Warranty:
• 091-22-5
  Resistance Ohms: 0.02
  Min. Operating Amps: 0.25
  Max. Operating Amps: 10
  Switch Rating 12V: 5A
  Dimensions: 2.63” L x 4.00” W x 1.50” H
  Warranty: 3 years

• 091-22-6
  Resistance Ohms: 0.02
  Min. Operating Amps: 0.10
  Max. Operating Amps: 4
  Switch Rating 12V: 5A
  Dimensions: 2.63” L x 4.00” W x 1.50” H
  Warranty: 3 years
