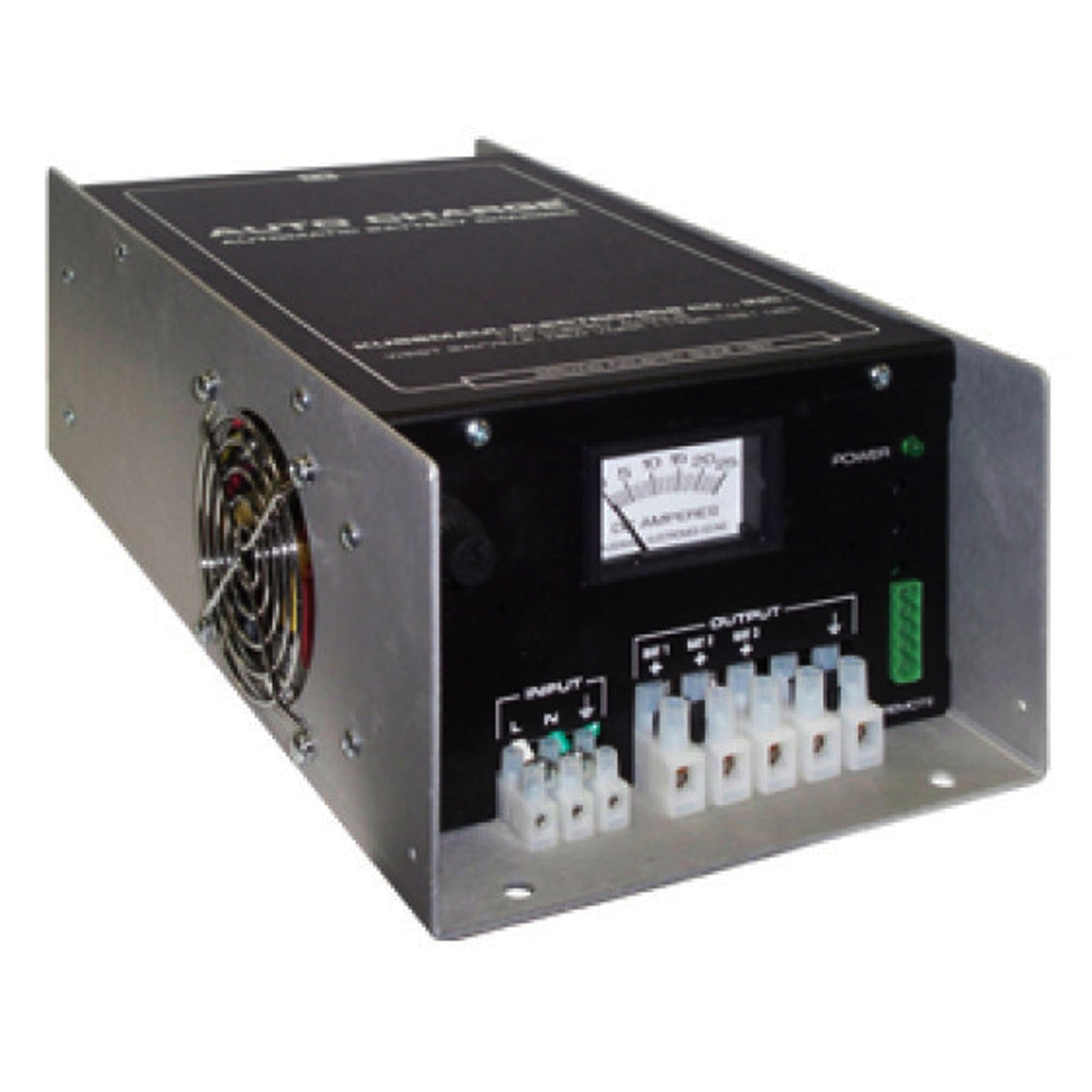

Kussmaul Auto Charge® 20

Triple Battery Banks at 20 Amps
Power Onboard Electronics. Front Panel Amp Meter.

• Automatically charges three battery banks utilizing independent sense circuits that control the voltage and current to each battery. Parasitic loads on one battery do not affect the others
• Full amperage output is available to any battery if the adjacent banks do not require charging, optimizing the use of available power in charging banks with differing parasitic load rates
• Front panel amp meter indicates total output current
• Optional remote display
• Includes a heavy duty aluminum case with a protective front panel plate and wire strain relief designed for emergency vehicle use
• 091-10-12 Auto Charge 20 12V
  Output Amperage: 20
  Input: 120 Vac, 50/60 Hz, 4.7 Amps Max
  Dimensions: 12.75” L x 6.75" W x 4.25” H
• 091-10-24 Auto Charge 20 24V
  Output Amperage: 10
  Input: 120 Vac, 50/60 Hz, 4.7 Amps Max
  Dimensions: 12.75” L x 6.75" W x 4.25” H
