Kussmaul Auto Charge® 11 Series

Dual Battery Banks
Power for Onboard Electronics. Front Panel Amp Meter.

The Kussmaul Electronics Auto Charge® 11 series consists of heavy-duty, fully automatic, dual-bank battery chargers designed explicitly for emergency fleet and specialty vehicles utilizing dual-battery systems. The core system contains two completely independent charging circuits that prevent parasitic electrical loads on one battery bank from draining or impacting the adjacent bank.

• Independent Sense Processing: Standard and High-Output units dynamically proportion the maximum available charging profile (either 10A or 20A) to whichever battery bank exhibits the higher capacity demand.
• No Water Boil-Off: Automatically terminates active power delivery when the battery banks achieve full charge, entirely eliminating trickle-charge overcharging risks to preserve electrolyte levels.
• Parasitic Load Support: Automatically assumes the electrical demand of downstream on-board DC apparatuses (radios, diagnostic electronics, scene lights) without drawing down the actual battery reserve.
• Independent Sense Processing: Standard and High-Output units dynamically proportion the maximum available charging profile (either 10A or 20A) to whichever battery bank exhibits the higher capacity demand.
• No Water Boil-Off: Automatically terminates active power delivery when the battery banks achieve full charge, entirely eliminating trickle-charge overcharging risks to preserve electrolyte levels.
• Parasitic Load Support: Automatically assumes the electrical demand of downstream on-board DC apparatuses (radios, diagnostic electronics, scene lights) without drawing down the actual battery reserve.

The specific variations requested represent the standard, high-output, and specialized display configurations of the platform:

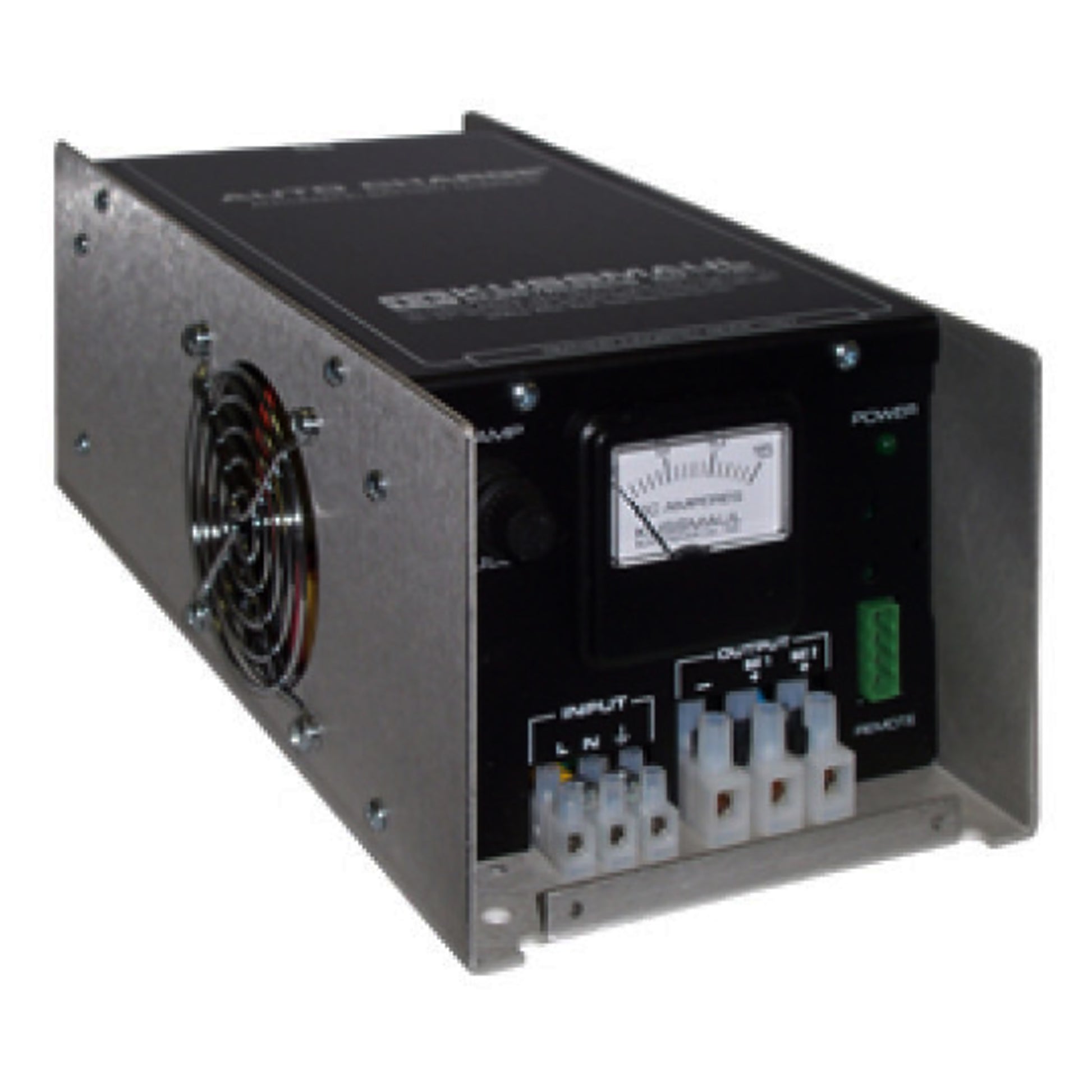

• 091-11-12 Auto Charge 11
  Output Voltage VDC: 12
  Output Amperage: 10
  Input: 120 Vac, 50/60 Hz, 2.5 Amps Max
  Dimensions: 11.375" L x 5.50" W x 4.375"

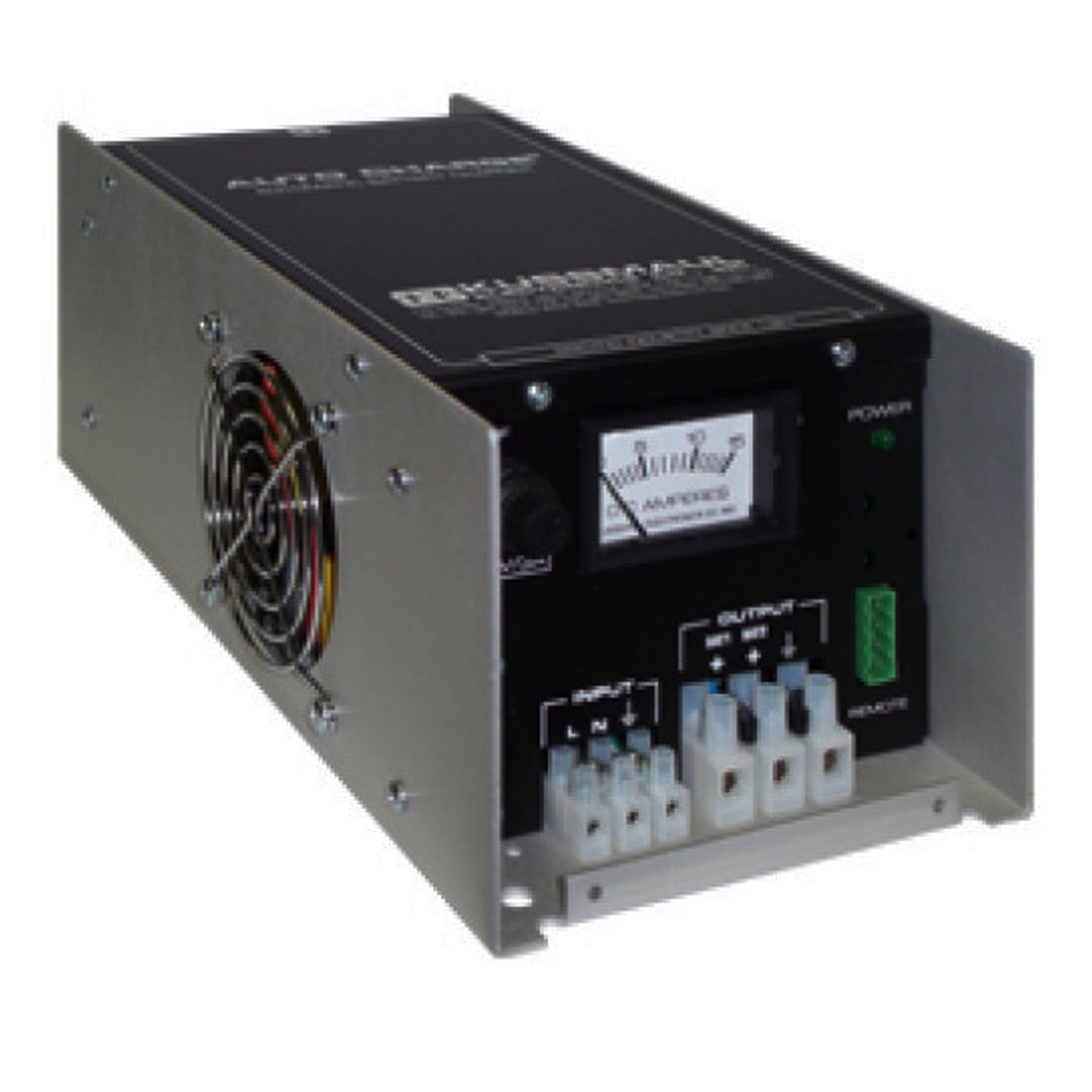

• 091-11DV-12 Auto Charge 11 DV
  Output Voltage VDC: 12
  Output Amperage: 10
  Input: 120/230 Vac, 50/60 Hz, 2.5 Amps Max
  Dimensions: 11.375" L x 5.50" W x 4.375" H

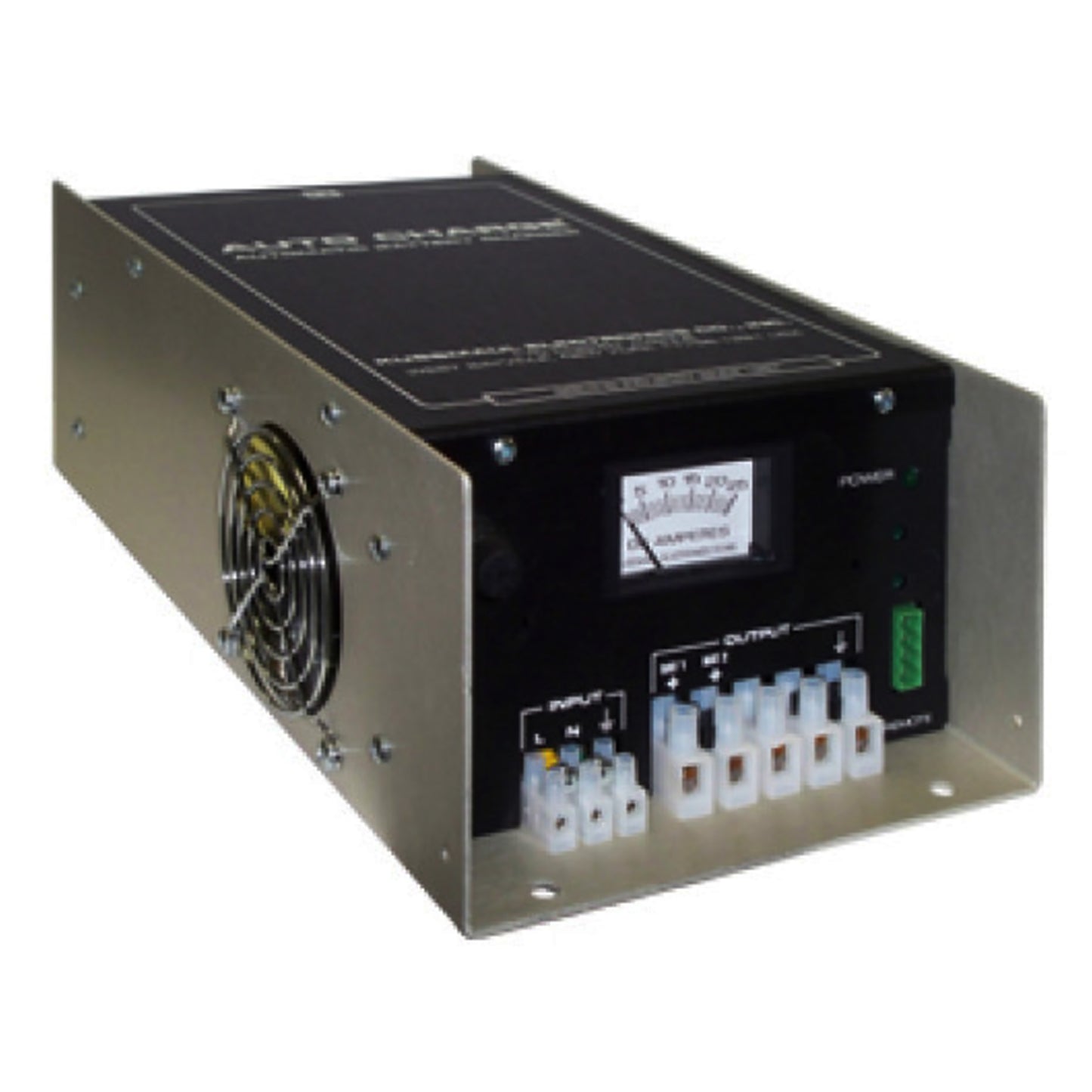

• 091-11HO-12 Auto Charge 11 HO
  Output Voltage VDC: 12
  Output Amperage: 20
  Input: 120 Vac, 50/60 Hz, 4.7 Amps Max
  Dimensions: 12.75" L x 6.75" W x 4.25" H
• 091-11-12-F Auto Charge 11 F 12V
  Standard 10-Amp / 12VDC automatic dual battery charger configured with a front-panel analog Ammeter Face.
  Dimensions: 11.375" L x 5.50" W x 4.375" H
• 091-11-12-IND Auto Charge 11 w/ Indicator
  Standard 10-Amp / 12VDC model packaged with an external, remote-mountable Single-LED Indicator to show active charging state.
  Dimensions: 11.375" L x 5.50" W x 4.375" H
• 091-11-12-IND-WT-RD Auto Charge 11 w/ Indicator and Watertight Display Red
  Standard 10-Amp / 12VDC model bundled with a Watertight Remote LED Display housing for open-cab or exterior panel mounting.
  Dimensions: 11.375" L x 5.50" W x 4.375" H
• 091-11HO-12-F Auto Charge 11 F High Output 12V
  High-Output 20-Amp / 12VDC dual battery charger featuring the front-panel analog Ammeter Face for double the charging recovery capacity.
  Dimensions: 12.75" L x 4.25" W x 4.25" H
• 091-11HO-12-IND Auto Charge 11 High Output w/ Indicator
  High-Output 20-Amp / 12VDC model packaged with an external, remote-mountable Single-LED Indicator.
  Dimensions: 12.75" L x 4.25" W x 4.25" H
