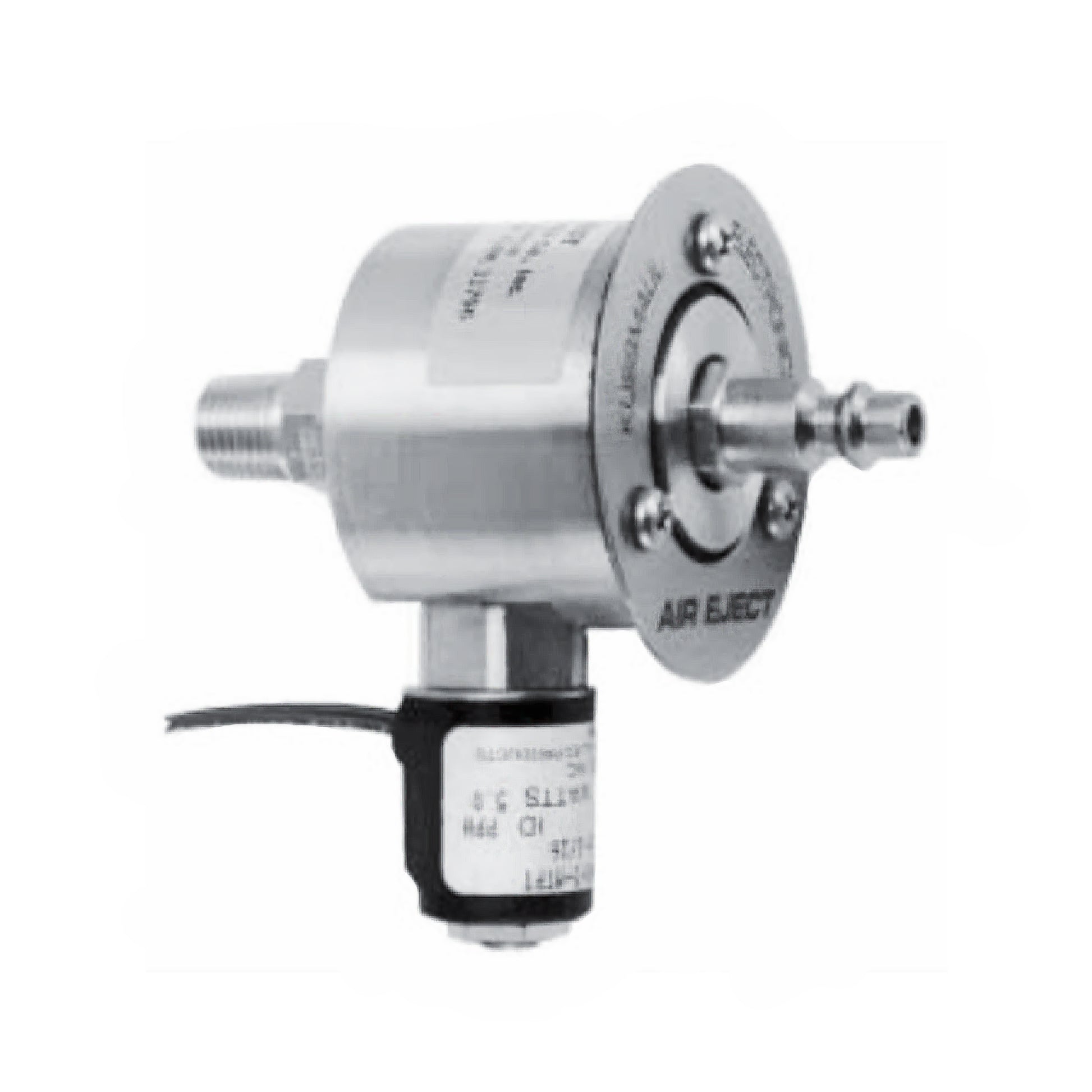

Kussmaul HP Air Eject

The HP Air Eject is a simple air operated pneumatic connector, designed specifically for vehicles with high pressure brake systems, the Air Eject HP will reliably disconnect the air line at any pressure between 20 and 175 PSI. The Air Eject HP is supplied with the mating air line connector, and check valve. Installation and wiring on the vehicle are simple, and easily accomplished.

• Input: 12 Vdc (091-28HP); 24 Vdc (091-28HP-24)
• PSI Rating: 175 PSI Max
• Ejection Units, Input Voltage: 24
• Ejection Unit, PSI: 175
• Minimum 20 PSI required for eject
• Truck side mount pneumatic connector accepts standard air hose adapters to maintain pressure on vehicle brake system when in station
• Upon engine start coupler disconnects and ejects air line, preventing hazardous and damaging drive-off with hose connected
• Dimensions: 3.60” H x 2.85” W x 1.70” D
• 2 year warranty

Optional 091-28AK Weatherproof Adapter Kit
