Kussmaul Generator AC System Monitor (VAAFH Meter)
Kussmaul Generator AC System Monitor (VAAFH Meter)
Regular price
$1,315.81 USD
Regular price
Sale price
$1,315.81 USD
Quantity
Couldn't load pickup availability
Built to order
Ships in 2–4 weeks
Tracking sent when it ships.
Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.

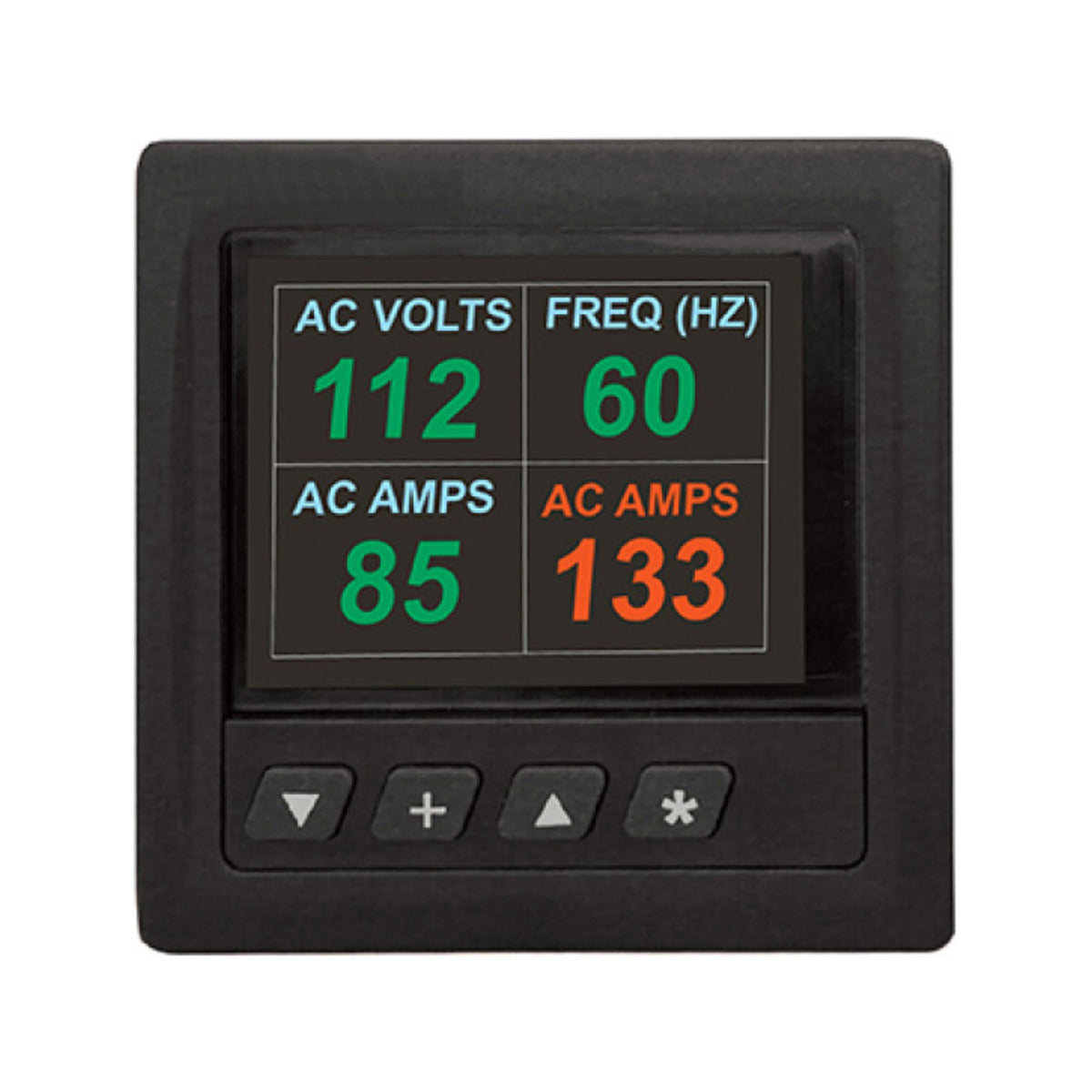

The Kussmaul Electronics Generator AC System Monitor (VAAFH Meter) is a critical diagnostic instrument that tracks, processes, and displays key electrical metrics from an operational vehicle generator setup. It is engineered for high-visibility monitoring of multi-leg power profiles. It handles up to 36 kW systems and simultaneously displays four functional metrics on one green LED screen:
- AC Voltage (120/240 VAC)
- AC Amperage (Monitors two independent power legs)
Line Frequency (Hz) - Hour Meter (Automatically displays accumulated service hours when the generator is off)
- Alarms: Outfitted with fully programmable High/Low warning alarms for volts and line frequency, alongside an over-amperage high alert. It relies on a local 85 dB audible signal, visual red backlight warning triggers, and built-in control relays for secondary remote sirens.
- Included Components: The package ships standard with two 150A Current Transformers (CTs) used to step down high amperage lines for localized sensor tracking.
- Power Parameters: Self-powered logic system drawing from a standard 9–33 VDC vehicle auxiliary battery profile.
