Kussmaul Electronics

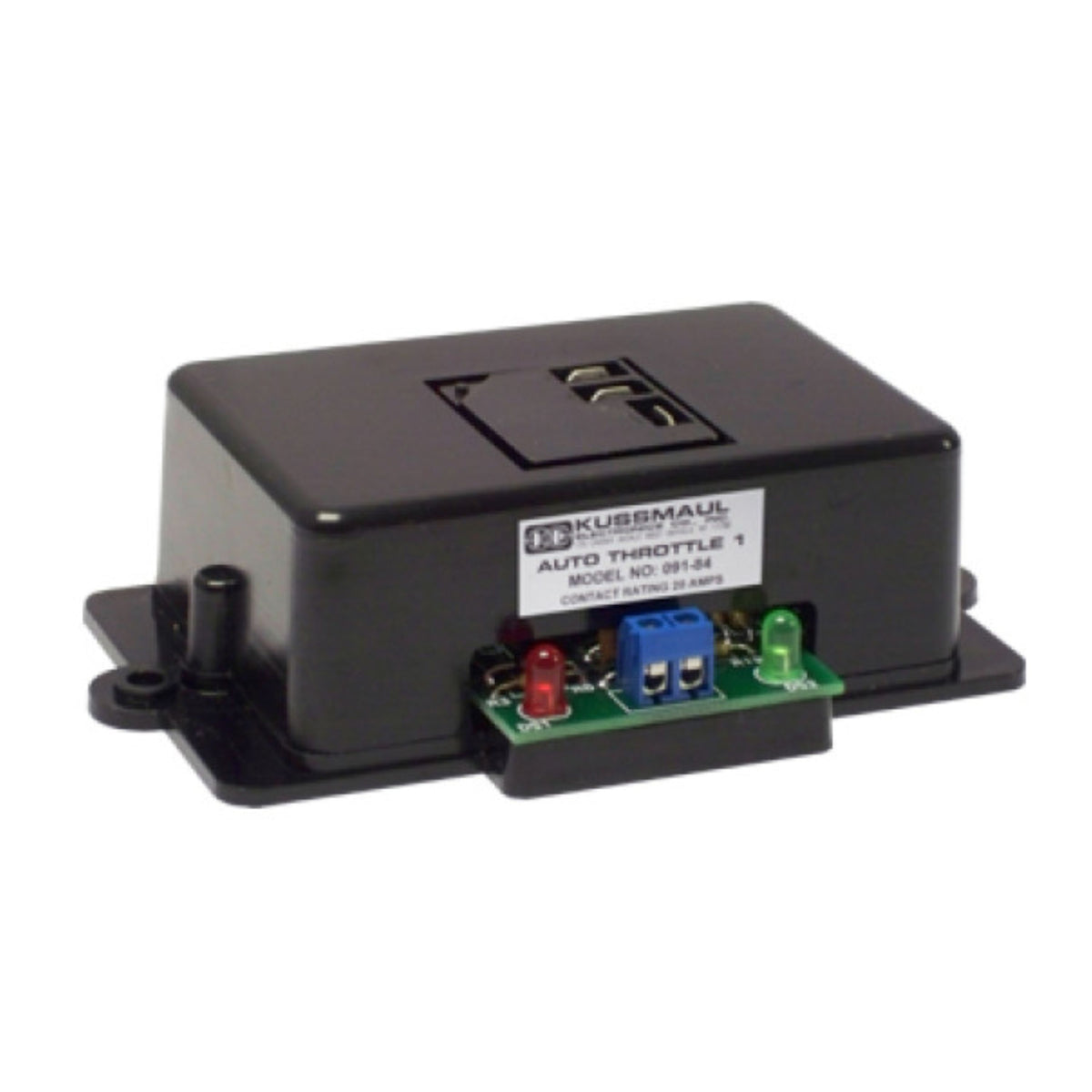

Kussmaul Auto Throttle 1
Kussmaul Auto Throttle 1
Couldn't load pickup availability
Built to order
Ships in 2–4 weeks
Tracking sent when it ships.
Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.
High Idle Control Automatically Increases Alternator Output.
The Kussmaul Auto Throttle 1 is a high-idle voltage controller designed to automatically increase engine speed when low battery voltage indicates insufficient alternator output. Monitors battery voltage and sends control signals for engine speed adjustment (installer provides speed mechanism). It activates after voltage remains below 12.5V for 15 seconds, then maintains high idle for at least 5 minutes or until voltage exceeds 13.4V, helping prevent unnecessary cycling. With 20-amp relay contacts and adjustable compatibility with virtually any throttle actuator, it provides a simple, reliable solution for increasing alternator output and maintaining vehicle electrical power.
- "ON" Delay: 15 Seconds
- Indicators: Red LED - Output "ON", Low Voltage Sensed Green LED, Output "OFF", Voltage Normal
- Off Delay: 5 Minutes
- Relay Contacts: Normally Open - 30 Amps Normally Closed - 20 Amps
- Set Point: "ON" at 12.5 Volts (Field Adjustable), "OFF" at 13.4 Volts
- Input: 12 Vdc, 1 Amp Max
- Warranty: 3 Years
