Kussmaul Electronics

Kussmaul Auto Eject WP

Kussmaul Auto Eject WP

$281.34 USD
$281.34 USD
Sale Sold out
Auto Eject WP Receptacle Options
Color Options

Built to order

Ships in 2–4 weeks

Tracking sent when it ships.

Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.

Eject Plug from Shore Power on Engine Start.

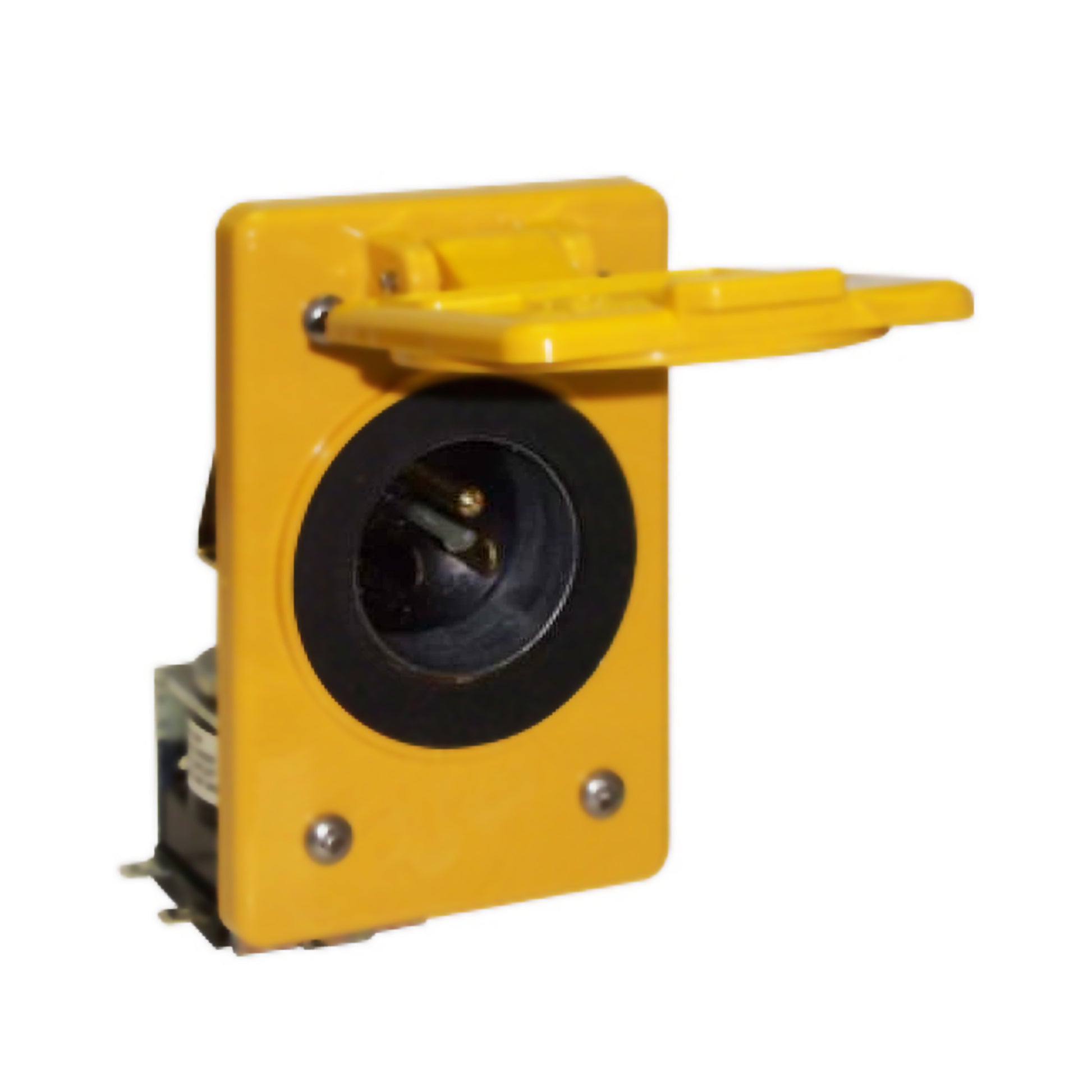

The Auto Eject WP is a 120V AC power inlet connector designed for reliable shoreline power connection in emergency and utility vehicles. Engineered for durability, it features a spring-loaded, weatherproof cover that automatically seals the outlet to protect against water, dust, and harsh environmental conditions when not in use. Ideal for fire trucks, ambulances, and service vehicles, this auto eject power inlet enhances operational efficiency and equipment protection.

  • 12 Vdc
  • Receptacles:
    120 Volts AC, 15 Amps (WP Auto Eject 091-18WP-120)
    120 Volts AC, 20 Amps (WP Auto Eject 091-20WP-120)
    12V/240V, 15A DC, 15A AC (WP Auto Eject 091-18WP-012)
  • Automatically disconnects shoreline
  • Eliminates broken shoreline
  • Completely sealed
  • Designed to be mounted on the side of a vehicle
  • 3.4” rear projection installs in the vehicle side walls with a limited depth clearance
  • System includes: Auto-Eject, Cover and Plug
  • Cover color options: Yellow, White, Blue, Black, Red, Gray
  • Dimensions: 3.30" W x 5.70" H x 3.40" D
  • 2 year warranty

Optional Accessories for Kussmaul Auto Eject WP, 091-18-098 - Dynamic Disconnect
