Kussmaul Electronics

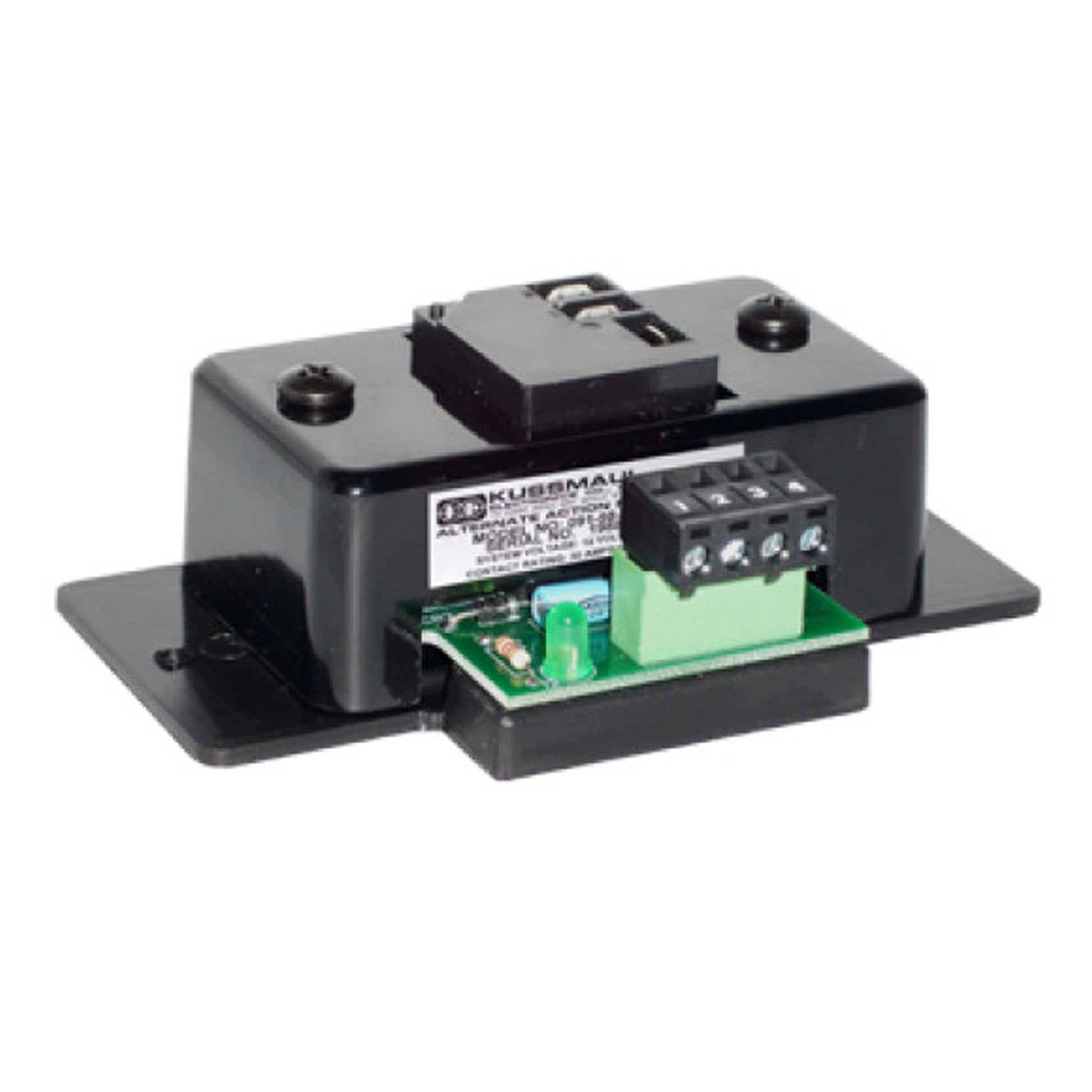

Kussmaul Alternate Action Relay
Kussmaul Alternate Action Relay
Regular price
$110.29 USD
Regular price
Sale price
$110.29 USD
Quantity
Couldn't load pickup availability
Built to order
Ships in 2–4 weeks
Tracking sent when it ships.
Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.
- Remotely controls a load from multiple locations
- 30A contacts with signal output to indicate relay position
- Easy installation
- Allows ON/OFF control by grounding an input
- First ground input energizes relay, turning load “ON”
- Second ground input de-energizes relay, turning load “OFF” - Supports multiple switches in parallel, allowing load to be turned ON at one location and OFF at another
- Output signal operates a remote indicator to show when the load is energized
- Dimensions: 2.63” L x 4.00” W x 1.50” H
- Warranty 3 years
