Air Line Reel for Air Ejects

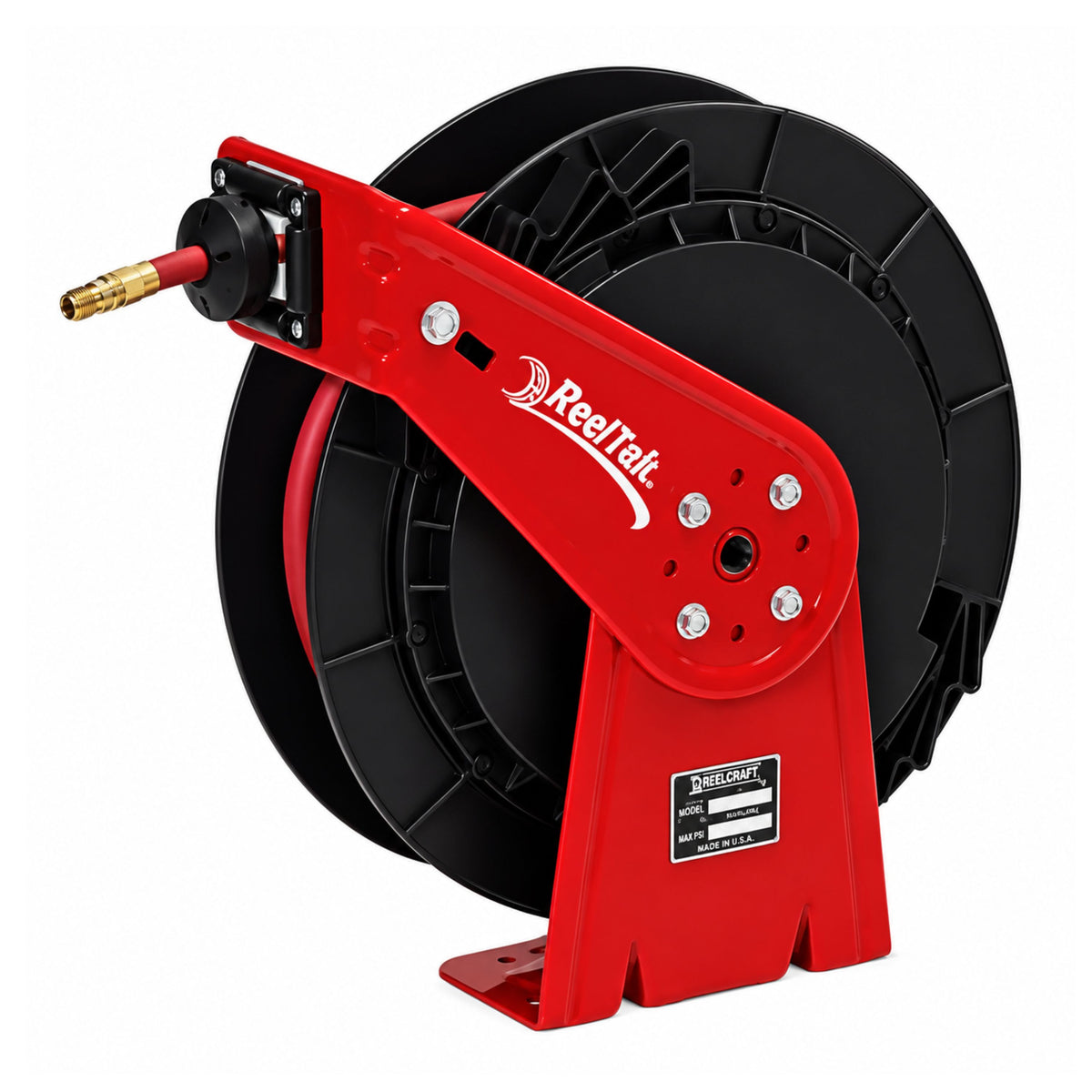

The Kussmaul Air Line Reel is a medium-duty, spring-retractable hose reel mounted to the wall or ceiling of fire stations or apparatus bays to supply compressed air directly to a vehicle's Kussmaul Air Eject system. Comes pre-loaded with 50 feet of 1/4" I.D. oil-resistant PVC air hose rated for up to 300 PSI. Includes a specialized female coupler designed to mate cleanly with standard Kussmaul Air Eject and High-Pressure Air Eject auto-disconnect systems. Features a lightweight composite/polypropylene spool paired with an adjustable structural steel guide arm and stamped base. The guide arm can be adjusted to seven different positions. Driven by a containerized, permanently sealed drive spring with an integrated ratchet latch and an adjustable latch bumper to relieve tension on the vehicle’s eject connection.
- Female coupler supplied to mate with Air Eject
- Spring retractable with latch
- Wall or ceiling mount
- 50 foot, 1/4 inch, 300 PSI hose
- Adjustable cord stop
- Connection Ports: 3/8" NPT (F) Reel Inlet and a 1/4" NPT (M) Hose End
