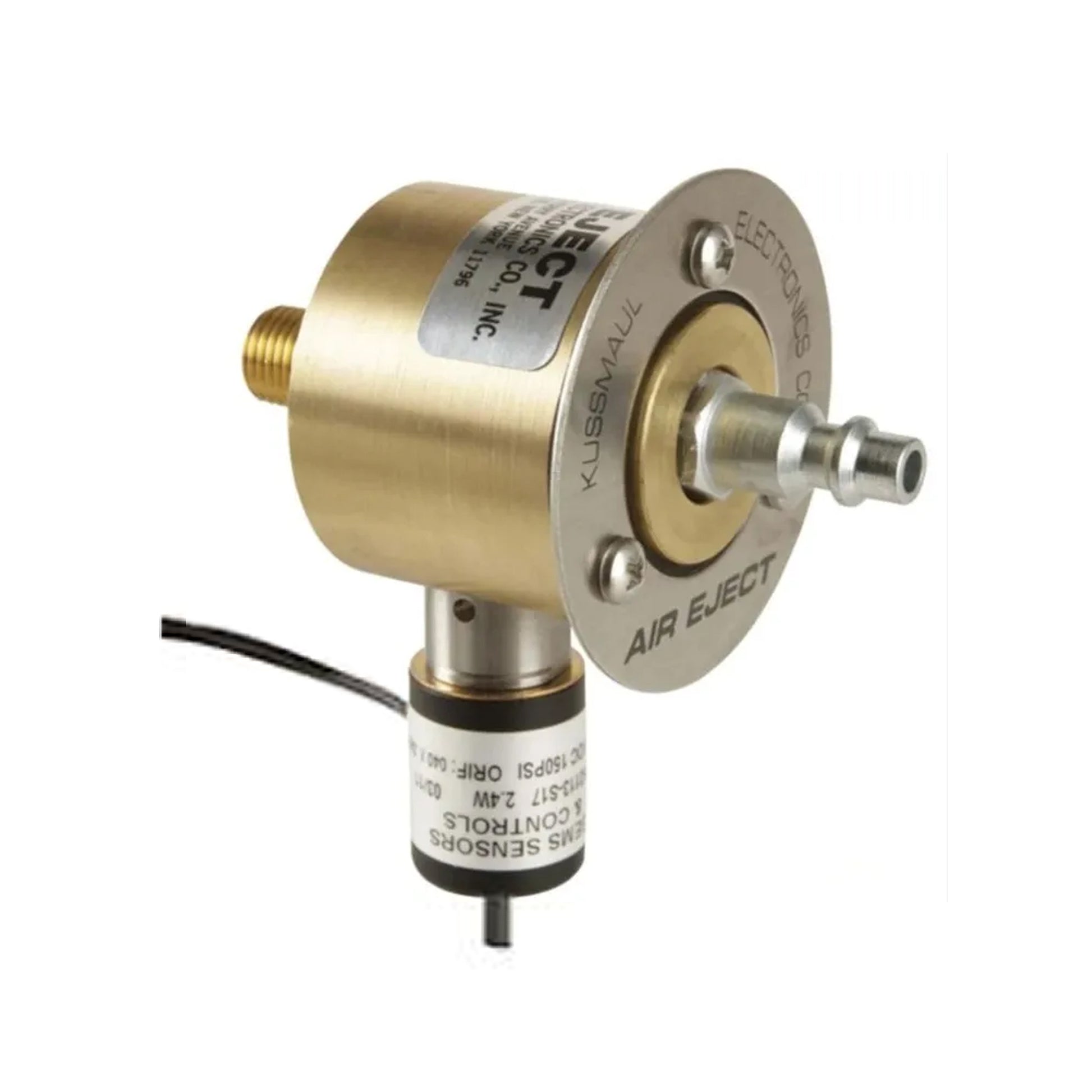

Kussmaul Air Eject

The Air Eject is a simple, air operated, pneumatic connector, which permits connecting an air pressure line to a vehicle. It is supplied with the mating air line connector, and check valve. Installation and wiring on the vehicle are simple, and easily accomplished.

• Input: 12 Vdc (091-28); 24 Vdc (091-28-24)
• PSI Rating: 140 PSI Max
• Ejection Units, Input Voltage: 12
• Ejection Unit, PSI:140 and 175
• Minimum 20 PSI required for eject
• Truck side mount pneumatic connector accepts standard air hose adapters to maintain pressure on vehicle brake system when in station
• Upon engine start coupler disconnects and ejects air line, preventing hazardous and damaging drive-off with hose connected
• Dimensions: 3.60” H x 2.85” W x 1.70” D
• 2 year warranty

Optional Accessories:
091-28AK Weatherproof Adapter Kit
EZ Mounting Plate with “Connected” Indicator
Auto Clean
Auto Pump Status Center
