Federal Signal

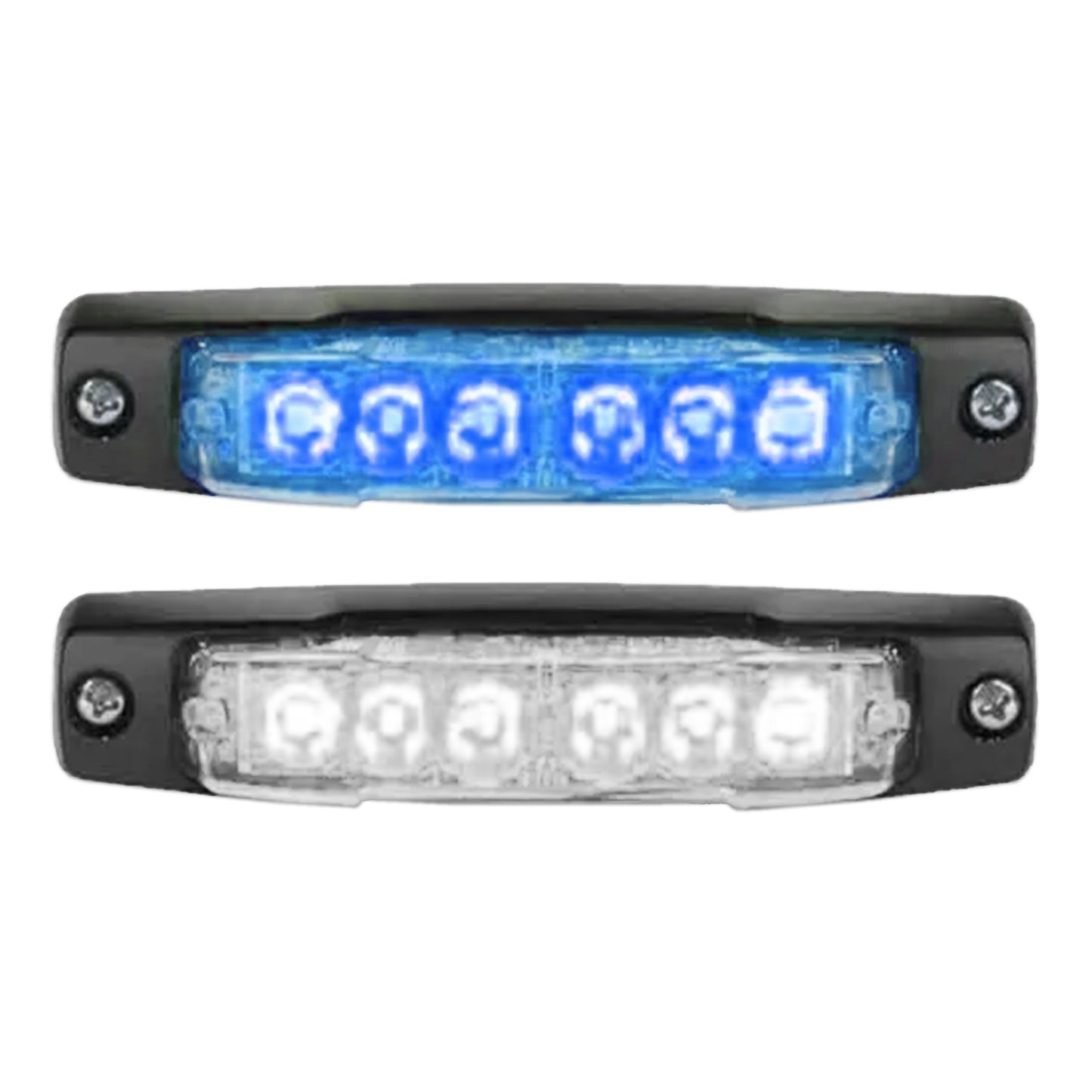

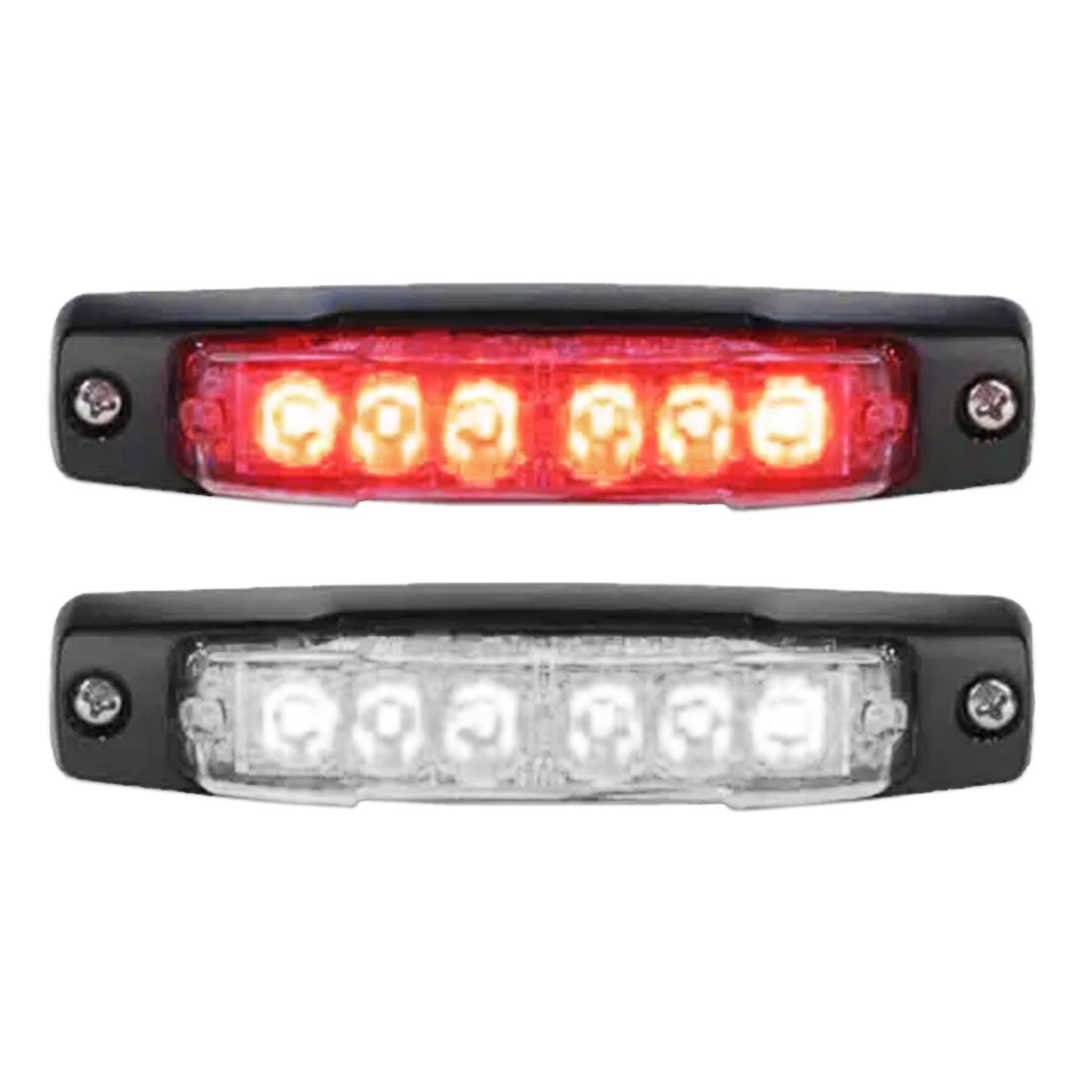

Federal Signal MicroPulse® C Series Steady Burn
Federal Signal MicroPulse® C Series Steady Burn
Couldn't load pickup availability
Built to order
Ships in 2–4 weeks
Tracking sent when it ships.
Need it sooner? Call us — we can often expedite.
Fleet or department? Send a PO or request a quote.

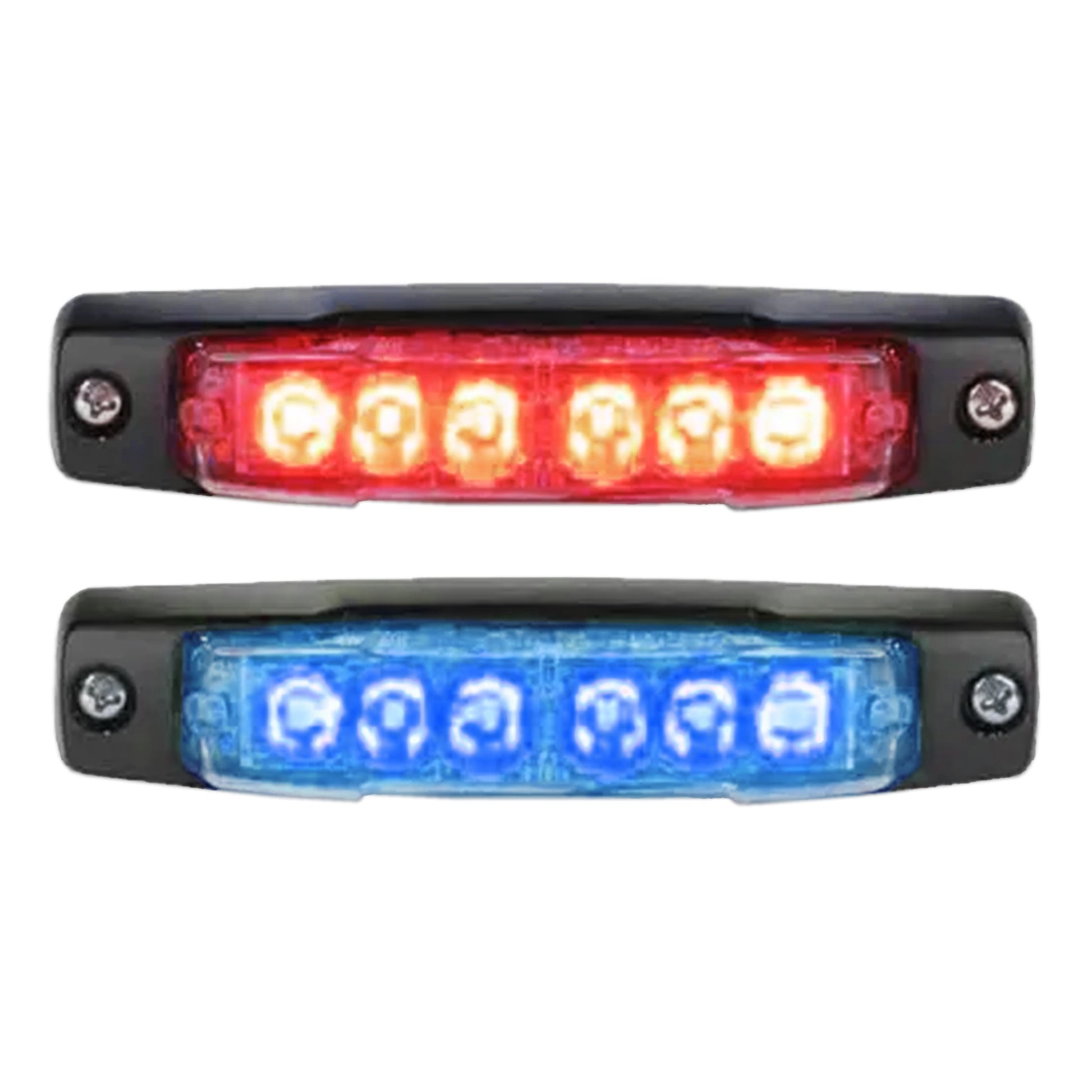

The Federal Signal MicroPulse® C Series Steady Burn is a low-profile perimeter warning light for police cars, fire trucks and command vehicles. Steady burn models are intended for the Pathfinder internal flasher or a compatible external flasher; third-party flashers must operate below 50% duty ratio as specified in the MPSC2X instructions. This listing is the red/blue MPSC2X-RB.
- LEDs: eight high-powered LEDs, dual-color (MPSC2X-RB is Red/Blue)
- Operation: externally flashed steady-burn lighthead with no onboard flash patterns; observe the MPSC2X flasher and duty-ratio requirements
- Voltage: 12 Vdc; confirm the MPSC2X-RB load rating before circuit sizing rather than using the shared C-Series 0.7 A figure
- Surface mount: 4.07 in L x 0.94 in W x 0.91 in H (10.3 x 2.4 x 2.3 cm)
- Stud mount: 3.3 in L x 0.94 in W x 0.7 in H (8.4 x 2.4 x 1.8 cm)
- Rating: IP67, fully encapsulated; UV-resistant polycarbonate lens
- Mounting: black surface mount bezel and stud mount standard
- Warranty: five years
- Manufacturer: Federal Signal
- Part number: MPSC2X-RB
Fits and pairs with: FSJoin Convergence Network sirens and controllers.
K&K Emergency Systems installs what it sells, from single parts to full upfits. Departments and fleets can request a quote for this item, the installation, or both.
