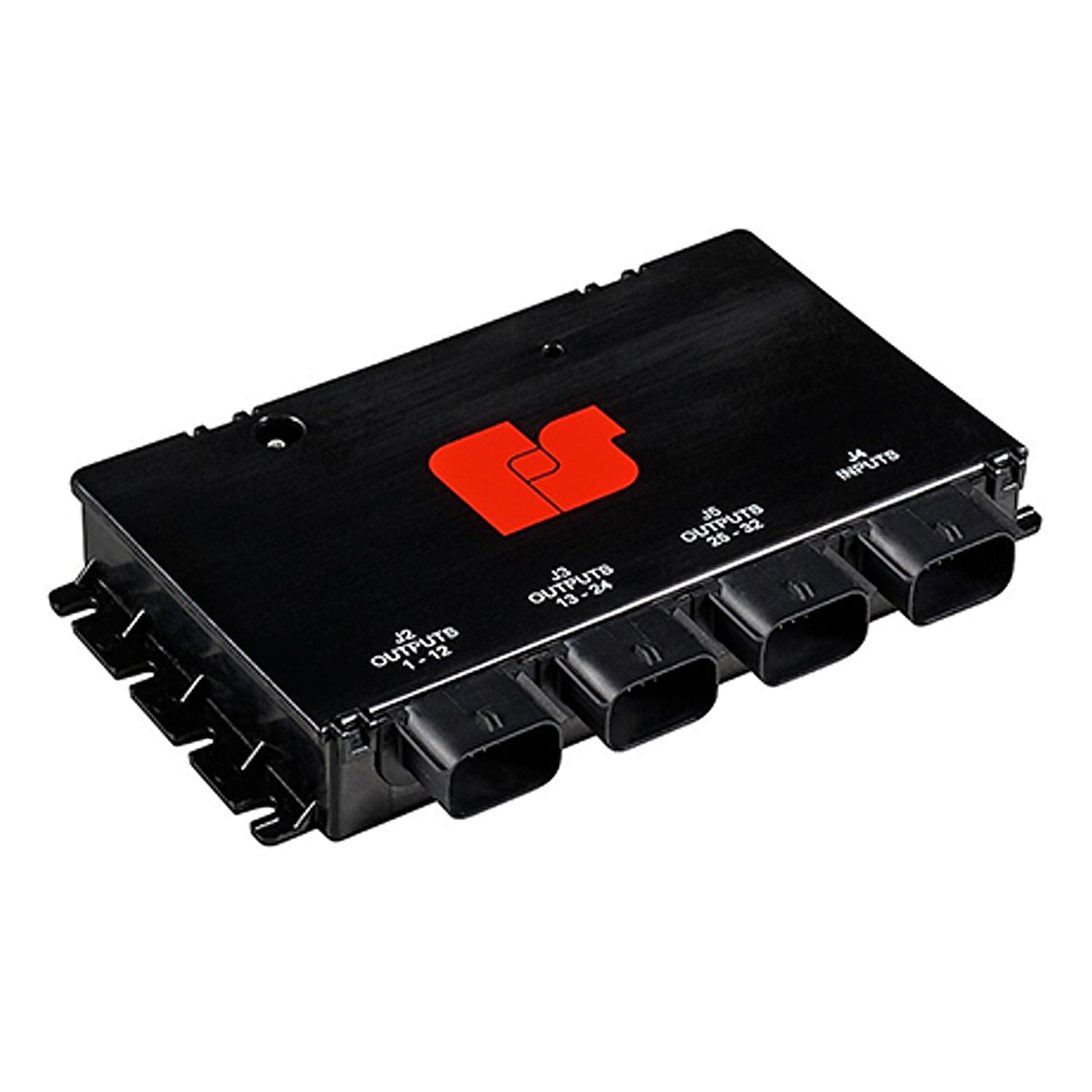

Federal Signal 32 Channel Expansion Module Pathfinder

The 32-Channel Expansion module works with any FSJoin™ Convergence Network siren, such as Pathfinder® and Pathway™, to provide an additional 32 flashing outputs to the siren.

The 32-Channel Expansion Module is programmed through the Convergence Network Configuration Software to provide a high level of distributed and customizable control capability. The maximum output current for each relay can also be set within the software. The 32-Channel Expansion Module is potted to help protect it from unfavorable weather conditions, making it ideal for under-the-hood mounting.

The Expansion Module makes installation faster and easier by providing 3-SPDT, diode-isolated relays allowing for brake light blackout and/or brake/taillight flash, eliminating the need for a taillight flasher. The blackout feature allows trained officers to have the ability to cut off all rear lighting to avoid detection.

Up to four 32-Channel Expansion modules can be used in a system. Each Expansion Module has a module identifier to easily help identify while programming in the Convergence Network Configuration software

• Input voltage: 11 Vdc to 16.0 Vdc
• Polarity: Negative ground only
• Operating Temperature Range: -40°C to 120°C (-40°F to 248°F)
• all relays at 50 percent power
• Standby Current: Less than 0.1 A
• Max input Current: 40 A
• Relays 1-32: 2.5 A max (active high), 40 A maximum total
• Dimensions: 1.2" H x 5.0" W x 7.4" L
• 5 year warranty
