Pathfinder® Power Distribution Module

Siren/Light Controller Accessory

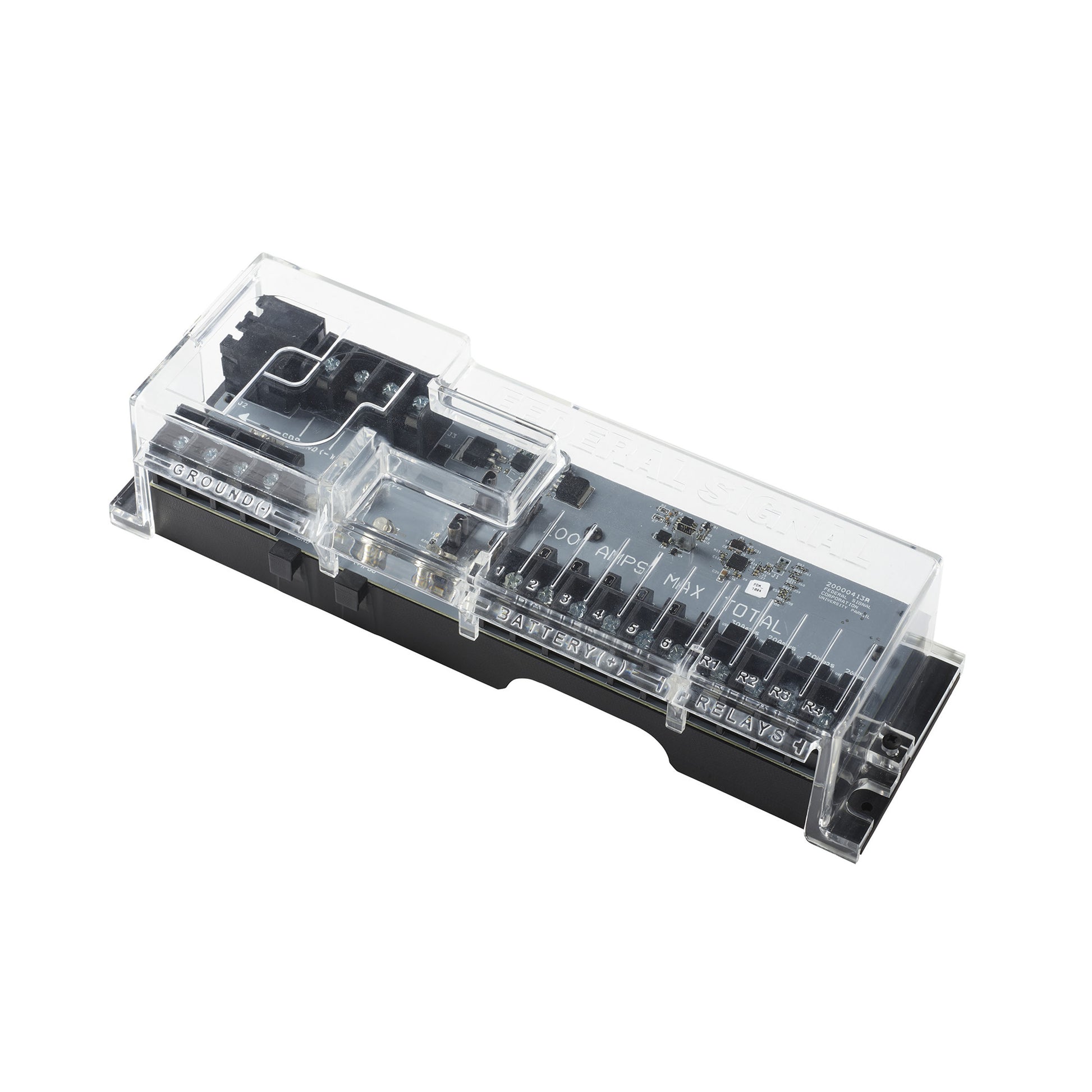

The new Federal Signal Power Distribution Module is now available and works with any Pathfinder® Siren to
provide electrical power from one main power source. The Power Distribution Module makes installation faster
and easier and increases reliability due to having fewer failure points. In the case of a product losing power, the
Power Distribution Module features diagnostic LEDs that will allow the failure point to be quickly located.

• Faster, easier install and distributed power/ground
• Eliminates the need for externally mounted fuse holders
• 100 Amp Max load
• (2) 40 Amp battery constant outputs
• (6) 30 Amp battery constant outputs
• (8) Red LED diagnostic indicator lights to the left of each fuse holder will illuminate if a fuse is blown and it has a load
• (4) programmable outputs through the Pathfinder
• (1) 30 Amp programmable output
• (3) 20 Amp programmable outputs
• (4) Green LED indicator lights above the (4) programmable outputs will illuminate when output is active
• (4) FS Convergence Network ports
• Five-year warranty
